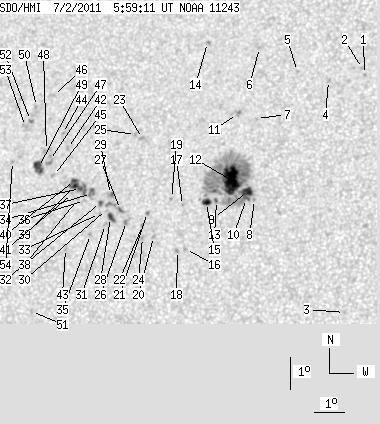

SDO HMI 2011-07-02 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.87 | 311.36 | 34.65 | 166.47 | 16.01 | 352.32 | -17.78 | 51.85 | 0.3741 | -165.7 | -86.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-02 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.51 | 357.98 | -12.11 | 34.70 | 0.3490 | -1011.0 | -840.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.70 | 357.90 | -12.20 | 34.54 | 0.3523 | -720.0 | -624.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.06 | 357.79 | -12.31 | 52.64 | 0.2634 | -834.0 | -619.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.30 | 356.80 | -13.29 | 37.52 | 0.3578 | -632.0 | -561.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 19.58 | 355.75 | -14.35 | 39.09 | 0.3718 | -781.0 | -511.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 20.33 | 354.40 | -15.70 | 40.21 | 0.3947 | -776.0 | -634.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 18.07 | 354.52 | -15.58 | 44.22 | 0.3676 | -837.0 | -582.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.53 | 354.66 | -15.43 | 49.46 | 0.3388 | -1014.0 | -794.8 | |
| 7.27 | 193.44 | 3.83 | 102.49 | 15.78 | 354.41 | -15.68 | 49.32 | 0.3444 | -1160.8 | -383.6 | |
| 2.09 | -9.00 | 1.10 | -9.00 | 15.56 | 354.40 | -15.69 | 49.86 | 0.3424 | -904.6 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.75 | 18.22 | 353.87 | -16.22 | 45.04 | 0.3767 | -889.0 | -773.7 | |
| 30.98 | -9.00 | 16.41 | -9.00 | 16.11 | 353.86 | -16.23 | 49.50 | 0.3547 | -1243.2 | 999999 | |
| 1.18 | -9.00 | 0.63 | -9.00 | 15.48 | 353.42 | -16.68 | 51.66 | 0.3541 | -862.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 20.46 | 352.62 | -17.48 | 42.90 | 0.4151 | -759.0 | -690.1 | |
| 4.00 | -9.00 | 2.12 | -9.00 | 15.41 | 353.09 | -17.00 | 52.33 | 0.3577 | -945.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 13.94 | 352.52 | -17.57 | 56.68 | 0.3522 | -909.0 | -720.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 15.31 | 352.31 | -17.79 | 53.75 | 0.3669 | -715.0 | -517.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 13.91 | 352.26 | -17.84 | 57.13 | 0.3555 | -838.0 | -684.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.52 | 351.92 | -18.17 | 53.82 | 0.3739 | -222.0 | -148.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 14.33 | 351.43 | -18.67 | 57.23 | 0.3703 | -825.0 | -626.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 15.07 | 351.16 | -18.93 | 55.87 | 0.3801 | 919.0 | 783.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.66 | 351.03 | -19.06 | 56.97 | 0.3785 | -694.0 | -576.0 | |
| 0.00 | 2.73 | 0.00 | 1.48 | 17.38 | 350.76 | -19.33 | 51.46 | 0.4057 | -725.0 | -633.5 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 14.29 | 351.07 | -19.03 | 57.79 | 0.3750 | -740.0 | -565.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 17.51 | 350.51 | -19.59 | 51.55 | 0.4099 | -679.0 | -490.9 | |
| 0.00 | 3.54 | 0.00 | 1.90 | 14.78 | 350.49 | -19.61 | 57.39 | 0.3868 | 916.0 | 765.1 | |
| 1.45 | 7.63 | 0.78 | 4.11 | 15.15 | 350.25 | -19.84 | 56.86 | 0.3930 | 919.8 | 911.0 | |
| 4.09 | 4.63 | 2.20 | 2.50 | 14.89 | 349.94 | -20.15 | 57.80 | 0.3952 | 1028.5 | 862.8 | |
| 0.00 | 3.45 | 0.00 | 1.87 | 15.61 | 349.87 | -20.23 | 56.32 | 0.4018 | 921.0 | 868.1 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 15.14 | 349.78 | -20.31 | 57.44 | 0.3993 | 613.0 | 617.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 14.67 | 349.79 | -20.30 | 58.46 | 0.3955 | 837.0 | 732.9 | |
| 0.73 | 1.91 | 0.39 | 1.03 | 15.36 | 349.56 | -20.54 | 57.24 | 0.4040 | 1007.2 | 786.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.01 | 349.56 | -20.54 | 57.99 | 0.4013 | 728.0 | 584.9 | |
| 0.00 | 6.18 | 0.00 | 3.35 | 15.63 | 349.22 | -20.87 | 57.04 | 0.4106 | 1026.0 | 854.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 14.35 | 349.32 | -20.77 | 59.72 | 0.3996 | 834.0 | 681.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.41 | 349.01 | -21.08 | 57.76 | 0.4118 | 802.0 | 516.1 | |
| 1.45 | 15.99 | 0.79 | 8.72 | 15.78 | 348.83 | -21.26 | 57.17 | 0.4170 | 1039.9 | 880.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 15.44 | 348.77 | -21.33 | 57.97 | 0.4152 | 732.0 | 534.3 | |
| 1.82 | -37.00 | 0.99 | -37.00 | 15.87 | 348.65 | -21.44 | 57.19 | 0.4201 | 1084.1 | 999999 | |
| 0.82 | -37.00 | 0.45 | -37.00 | 16.03 | 348.60 | -21.49 | 56.92 | 0.4220 | 856.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 15.62 | 348.58 | -21.52 | 57.79 | 0.4192 | 719.0 | 549.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 17.03 | 348.24 | -21.85 | 55.30 | 0.4347 | 819.0 | 725.7 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 13.90 | 348.52 | -21.57 | 61.57 | 0.4076 | 748.0 | 536.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 17.49 | 348.01 | -22.08 | 54.64 | 0.4414 | 886.0 | 671.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 16.17 | 347.86 | -22.23 | 57.43 | 0.4329 | 598.0 | 494.3 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 18.69 | 347.54 | -22.55 | 52.92 | 0.4573 | 834.0 | 609.0 | |
| 0.00 | 4.82 | 0.00 | 2.65 | 16.64 | 347.67 | -22.42 | 56.70 | 0.4390 | 634.0 | 792.2 | |
| 0.00 | 3.45 | 0.00 | 1.91 | 16.95 | 347.53 | -22.56 | 56.24 | 0.4433 | 700.0 | 611.4 | |
| 8.99 | 10.36 | 4.96 | 5.72 | 16.41 | 347.32 | -22.77 | 57.53 | 0.4420 | 863.1 | 667.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 18.33 | 347.00 | -23.10 | 54.18 | 0.4611 | 713.0 | 591.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 11.93 | 347.55 | -22.54 | 66.94 | 0.4093 | 807.0 | 602.8 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 17.88 | 346.85 | -23.24 | 55.17 | 0.4594 | 936.0 | 880.8 | |
| 0.00 | 2.91 | 0.00 | 1.62 | 17.69 | 346.70 | -23.39 | 55.69 | 0.4598 | 708.0 | 499.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 16.58 | 346.40 | -23.70 | 58.12 | 0.4554 | 730.0 | 521.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
