SDO HMI 2011-07-02 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 12.81 | 0.24 | 6.75 | 15.60 | 23.95 | 15.49 | 310.88 | 0.3428 | -25.4 | -2.4 | |
|
previous
or next observation for the same group /

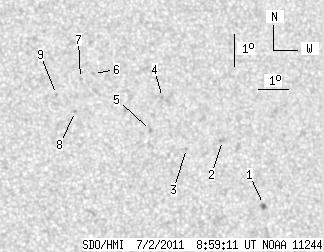

back to the solar disc SDO HMI 2011-07-02 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 3.00 | 0.24 | 1.59 | 13.41 | 26.82 | 18.36 | 300.93 | 0.3588 | 880.8 | 881.0 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 15.42 | 25.63 | 17.18 | 307.41 | 0.3599 | -715.0 | -670.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.19 | 24.42 | 15.97 | 308.79 | 0.3421 | -807.0 | -627.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.80 | 23.76 | 15.31 | 313.59 | 0.3504 | -842.0 | -664.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 15.77 | 23.28 | 14.83 | 312.15 | 0.3337 | -1002.0 | -765.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 17.58 | 21.55 | 13.10 | 319.54 | 0.3344 | -536.0 | -353.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.43 | 21.11 | 12.66 | 320.16 | 0.3278 | 753.0 | 471.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.39 | 20.88 | 12.43 | 318.47 | 0.3127 | 921.0 | 703.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.93 | 20.29 | 11.84 | 320.96 | 0.3131 | 901.0 | 703.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
