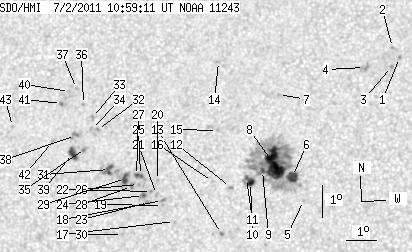

SDO HMI 2011-07-02 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.32 | 289.97 | 35.97 | 152.84 | 16.14 | 352.50 | -14.85 | 46.60 | 0.3391 | -139.7 | -82.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-02 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.55 | 357.90 | -9.45 | 28.43 | 0.3263 | -962.0 | -774.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 19.87 | 357.65 | -9.70 | 28.56 | 0.3328 | -782.0 | -636.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.26 | 357.66 | -9.69 | 29.50 | 0.3242 | -921.0 | -745.6 | |
| 0.00 | 5.18 | 0.00 | 2.72 | 19.22 | 356.78 | -10.58 | 31.72 | 0.3311 | -833.0 | -730.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 15.02 | 355.05 | -12.30 | 44.46 | 0.2951 | -839.0 | -604.2 | |
| 8.81 | 188.06 | 4.59 | 98.30 | 15.77 | 354.65 | -12.70 | 43.57 | 0.3084 | -1151.1 | -382.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.34 | 354.01 | -13.34 | 39.47 | 0.3461 | -967.0 | -728.2 | |
| 33.71 | -6.00 | 17.61 | -6.00 | 16.13 | 354.04 | -13.31 | 44.03 | 0.3196 | -1200.6 | 999999 | |
| 1.73 | -6.00 | 0.90 | -6.00 | 15.94 | 353.66 | -13.69 | 45.25 | 0.3219 | -755.4 | 999999 | |
| 3.82 | -6.00 | 2.00 | -6.00 | 15.56 | 353.30 | -14.06 | 46.86 | 0.3220 | -1028.0 | 999999 | |
| 1.18 | -6.00 | 0.62 | -6.00 | 15.69 | 353.16 | -14.20 | 46.84 | 0.3251 | -627.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 15.40 | 352.66 | -14.70 | 48.48 | 0.3281 | -838.0 | -618.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.96 | 352.46 | -14.89 | 52.39 | 0.3162 | -915.0 | -807.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.36 | 351.92 | -15.43 | 41.51 | 0.3804 | -851.0 | -588.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 17.18 | 352.09 | -15.26 | 45.53 | 0.3540 | -761.0 | -637.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 15.58 | 352.05 | -15.30 | 49.15 | 0.3375 | -529.0 | -409.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 14.32 | 350.90 | -16.45 | 54.12 | 0.3401 | -823.0 | -696.9 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 14.96 | 350.46 | -16.90 | 53.25 | 0.3520 | 946.0 | 760.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 14.81 | 350.47 | -16.88 | 53.60 | 0.3504 | 921.0 | 798.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.58 | 350.24 | -17.11 | 52.14 | 0.3606 | 744.0 | 595.8 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 15.15 | 350.24 | -17.11 | 53.15 | 0.3564 | 900.0 | 744.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 15.24 | 350.07 | -17.28 | 53.20 | 0.3595 | 937.0 | 810.6 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 14.89 | 350.00 | -17.35 | 54.10 | 0.3573 | 1048.0 | 788.6 | |
| 0.64 | 3.45 | 0.34 | 1.83 | 15.11 | 349.82 | -17.54 | 53.87 | 0.3617 | 1172.9 | 889.3 | |
| 0.36 | 6.81 | 0.19 | 3.63 | 15.73 | 349.66 | -17.69 | 52.68 | 0.3694 | 1068.2 | 783.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 15.45 | 349.62 | -17.73 | 53.38 | 0.3673 | 1136.0 | 916.5 | |
| 1.82 | -25.00 | 0.97 | -25.00 | 15.73 | 349.53 | -17.82 | 52.88 | 0.3711 | 952.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.31 | 15.38 | 349.39 | -17.96 | 53.86 | 0.3697 | 1052.0 | 910.4 | |
| 4.72 | 28.62 | 2.52 | 15.32 | 15.63 | 349.17 | -18.18 | 53.62 | 0.3748 | 1052.6 | 720.3 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 13.89 | 349.22 | -18.13 | 57.61 | 0.3592 | 831.0 | 624.9 | |
| 4.63 | -29.00 | 2.49 | -29.00 | 15.90 | 348.61 | -18.74 | 53.80 | 0.3846 | 939.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 17.15 | 348.08 | -19.27 | 51.88 | 0.4026 | 984.0 | 808.4 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 17.52 | 347.87 | -19.48 | 51.41 | 0.4087 | 907.0 | 655.0 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 17.15 | 347.88 | -19.48 | 52.16 | 0.4051 | 703.0 | 551.9 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 16.55 | 347.74 | -19.61 | 53.59 | 0.4015 | 957.0 | 835.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 17.93 | 347.52 | -19.84 | 51.07 | 0.4168 | 889.0 | 656.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 18.43 | 347.22 | -20.14 | 50.49 | 0.4251 | 826.0 | 661.2 | |
| 0.00 | 5.91 | 0.00 | 3.20 | 16.95 | 347.36 | -20.00 | 53.25 | 0.4100 | 810.0 | 717.0 | |
| 6.90 | 7.99 | 3.74 | 4.33 | 16.38 | 347.32 | -20.04 | 54.47 | 0.4056 | 908.1 | 757.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 18.33 | 346.99 | -20.36 | 50.98 | 0.4269 | 722.0 | 589.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.95 | 346.76 | -20.59 | 52.01 | 0.4263 | 883.0 | 799.4 | |
| 0.00 | 2.63 | 0.00 | 1.44 | 16.75 | 346.60 | -20.76 | 54.61 | 0.4180 | 774.0 | 600.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.19 | 345.17 | -22.18 | 55.37 | 0.4401 | 676.0 | 493.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
