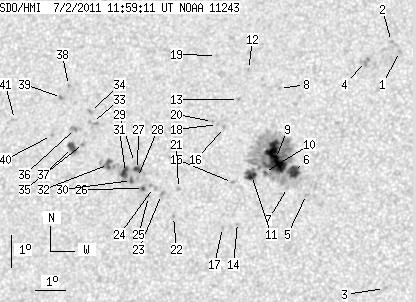

SDO HMI 2011-07-02 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.76 | 289.15 | 39.27 | 151.86 | 16.11 | 352.72 | -14.09 | 45.22 | 0.3296 | -287.4 | -145.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-02 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.55 | 357.91 | -8.89 | 27.02 | 0.3221 | -918.0 | -713.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.87 | 357.63 | -9.17 | 27.26 | 0.3288 | -796.0 | -635.1 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 12.14 | 357.76 | -9.04 | 43.91 | 0.2226 | -585.0 | -357.0 | |
| 0.00 | 5.00 | 0.00 | 2.62 | 19.23 | 356.81 | -9.99 | 30.29 | 0.3261 | -927.0 | -766.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 15.03 | 355.15 | -11.66 | 42.95 | 0.2877 | -909.0 | -698.8 | |
| 10.45 | 173.78 | 5.43 | 90.62 | 15.74 | 354.68 | -12.12 | 42.33 | 0.3014 | -1099.7 | -385.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 15.24 | 354.52 | -12.28 | 43.89 | 0.2974 | -186.0 | -148.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.34 | 354.05 | -12.75 | 38.22 | 0.3401 | -889.0 | -617.7 | |
| 33.16 | -6.00 | 17.29 | -6.00 | 16.14 | 354.07 | -12.73 | 42.77 | 0.3130 | -1186.3 | 999999 | |
| 1.09 | -6.00 | 0.57 | -6.00 | 15.70 | 353.75 | -13.06 | 44.50 | 0.3117 | -803.9 | 999999 | |
| 7.36 | 13.08 | 3.84 | 6.83 | 15.60 | 353.33 | -13.47 | 45.60 | 0.3155 | -908.9 | -499.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.93 | 352.98 | -13.82 | 39.30 | 0.3584 | -895.0 | -705.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.98 | 352.73 | -14.08 | 41.64 | 0.3497 | -792.0 | -652.0 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 14.13 | 352.97 | -13.83 | 49.97 | 0.3041 | -663.0 | -652.8 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 15.38 | 352.73 | -14.08 | 47.35 | 0.3202 | -789.0 | -607.5 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 17.09 | 352.34 | -14.47 | 44.23 | 0.3438 | -728.0 | -530.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.97 | 352.49 | -14.31 | 51.31 | 0.3086 | -894.0 | -694.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.19 | 352.10 | -14.71 | 44.49 | 0.3476 | -787.0 | -615.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 19.36 | 351.87 | -14.93 | 40.60 | 0.3751 | -857.0 | -681.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.28 | 351.93 | -14.88 | 44.62 | 0.3506 | -747.0 | -550.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 15.17 | 350.98 | -15.83 | 51.04 | 0.3400 | 829.0 | 700.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.29 | 350.88 | -15.93 | 53.34 | 0.3329 | -706.0 | -565.2 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 14.97 | 350.43 | -16.37 | 52.41 | 0.3451 | 1007.0 | 829.9 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 15.18 | 350.15 | -16.65 | 52.35 | 0.3508 | 478.0 | 684.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 14.90 | 350.01 | -16.79 | 53.24 | 0.3500 | 911.0 | 774.1 | |
| 1.54 | 3.27 | 0.82 | 1.73 | 15.15 | 349.82 | -16.98 | 52.94 | 0.3547 | 1100.3 | 808.7 | |
| 3.72 | 5.90 | 1.98 | 3.14 | 15.74 | 349.57 | -17.23 | 51.97 | 0.3635 | 990.4 | 637.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 15.49 | 349.60 | -17.21 | 52.51 | 0.3608 | 1074.0 | 813.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.96 | 349.46 | -17.35 | 51.67 | 0.3670 | 736.0 | 560.5 | |
| 1.54 | 27.71 | 0.82 | 14.77 | 15.39 | 349.41 | -17.40 | 53.01 | 0.3624 | 908.1 | 699.5 | |
| 5.72 | -30.00 | 3.05 | -30.00 | 15.64 | 349.19 | -17.62 | 52.78 | 0.3676 | 1006.1 | 999999 | |
| 4.09 | -30.00 | 2.19 | -30.00 | 15.88 | 348.60 | -18.21 | 53.10 | 0.3774 | 969.6 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.96 | 17.19 | 347.93 | -18.87 | 51.26 | 0.3979 | 542.0 | 725.0 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 17.53 | 347.83 | -18.98 | 50.70 | 0.4024 | 962.0 | 732.5 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 16.52 | 347.70 | -19.11 | 52.96 | 0.3948 | 963.0 | 841.0 | |
| 0.00 | 4.54 | 0.00 | 2.46 | 16.99 | 347.38 | -19.43 | 52.42 | 0.4031 | 922.0 | 731.4 | |
| 6.09 | 7.45 | 3.28 | 4.02 | 16.39 | 347.34 | -19.46 | 53.72 | 0.3982 | 911.1 | 756.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 18.34 | 346.99 | -19.82 | 50.25 | 0.4203 | 787.0 | 643.2 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 17.96 | 346.79 | -20.01 | 51.25 | 0.4192 | 978.0 | 775.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.76 | 346.59 | -20.21 | 53.92 | 0.4111 | 755.0 | 660.8 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 17.24 | 345.27 | -21.53 | 54.55 | 0.4321 | 574.0 | 374.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
