SDO HMI 2011-07-02 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.47 | 293.78 | 34.71 | 153.76 | 16.34 | 352.66 | -13.04 | 42.54 | 0.3207 | -218.4 | -118.3 | |
|
previous
or next observation for the same group /

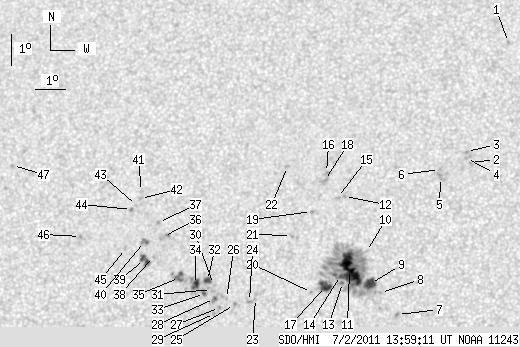

back to the solar disc SDO HMI 2011-07-02 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | 23.46 | 358.91 | -6.79 | 17.21 | 0.3680 | 749.0 | 566.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.59 | 357.85 | -7.85 | 24.20 | 0.3151 | -864.0 | -657.2 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 19.94 | 357.71 | -7.99 | 24.12 | 0.3213 | -806.0 | -652.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.72 | 357.72 | -7.98 | 24.39 | 0.3179 | -809.0 | -548.0 | |
| 0.00 | 4.45 | 0.00 | 2.32 | 19.11 | 356.90 | -8.80 | 27.46 | 0.3149 | -858.0 | -764.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 19.36 | 356.85 | -8.85 | 27.19 | 0.3189 | -796.0 | -699.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 14.79 | 355.73 | -9.97 | 39.19 | 0.2661 | -1024.0 | -868.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.48 | 355.15 | -10.55 | 39.12 | 0.2809 | -953.0 | -706.0 | |
| 8.63 | 184.92 | 4.46 | 96.03 | 15.75 | 354.81 | -10.89 | 39.34 | 0.2880 | -1141.4 | -411.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.75 | 354.63 | -11.07 | 37.60 | 0.3028 | -77.0 | -70.8 | |
| 31.79 | -9.00 | 16.51 | -9.00 | 16.18 | 354.11 | -11.59 | 40.09 | 0.3010 | -1188.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.48 | 353.80 | -11.90 | 36.12 | 0.3333 | -917.0 | -632.8 | |
| 1.18 | -9.00 | 0.61 | -9.00 | 15.78 | 353.91 | -11.79 | 41.50 | 0.2982 | -831.0 | 999999 | |
| 0.27 | -9.00 | 0.14 | -9.00 | 15.99 | 353.83 | -11.87 | 41.18 | 0.3017 | -848.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 18.44 | 353.57 | -12.13 | 36.69 | 0.3351 | -834.0 | -736.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 19.23 | 353.15 | -12.55 | 36.15 | 0.3493 | -844.0 | -647.6 | |
| 8.54 | -9.00 | 4.44 | -9.00 | 15.64 | 353.36 | -12.34 | 43.05 | 0.3027 | -932.5 | 999999 | |
| 0.00 | 4.90 | 0.00 | 2.59 | 18.98 | 353.10 | -12.60 | 36.71 | 0.3465 | -864.0 | -654.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.99 | 352.75 | -12.95 | 39.34 | 0.3378 | -812.0 | -723.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 15.45 | 352.92 | -12.78 | 44.49 | 0.3055 | -650.0 | -503.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.23 | 352.15 | -13.55 | 42.14 | 0.3350 | -791.0 | -661.2 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 19.41 | 351.84 | -13.86 | 38.50 | 0.3645 | -867.0 | -646.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.24 | 351.11 | -14.59 | 48.65 | 0.3251 | 574.0 | 498.3 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 15.15 | 350.93 | -14.77 | 49.23 | 0.3264 | 907.0 | 669.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 15.05 | 350.44 | -15.26 | 50.34 | 0.3315 | 931.0 | 834.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.23 | 350.17 | -15.53 | 50.39 | 0.3369 | 881.0 | 659.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.95 | 349.96 | -15.74 | 51.42 | 0.3367 | 1002.0 | 803.7 | |
| 0.54 | 5.45 | 0.29 | 2.87 | 15.23 | 349.77 | -15.93 | 51.07 | 0.3418 | 1219.2 | 812.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 14.76 | 349.81 | -15.89 | 52.13 | 0.3368 | 898.0 | 696.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 15.66 | 349.71 | -15.99 | 50.17 | 0.3470 | 539.0 | 474.6 | |
| 0.00 | 3.18 | 0.00 | 1.68 | 15.50 | 349.65 | -16.05 | 50.62 | 0.3461 | 787.0 | 719.1 | |
| 3.45 | 5.00 | 1.82 | 2.64 | 15.78 | 349.50 | -16.20 | 50.24 | 0.3508 | 967.3 | 855.9 | |
| 1.45 | 3.00 | 0.77 | 1.58 | 15.38 | 349.43 | -16.27 | 51.28 | 0.3477 | 983.3 | 799.8 | |
| 4.90 | 8.99 | 2.60 | 4.76 | 15.65 | 349.11 | -16.59 | 51.16 | 0.3544 | 1096.9 | 847.7 | |
| 0.00 | 10.26 | 0.00 | 5.45 | 15.86 | 348.57 | -17.13 | 51.55 | 0.3634 | 1066.0 | 829.2 | |
| 0.00 | 5.18 | 0.00 | 2.78 | 17.14 | 347.91 | -17.79 | 49.78 | 0.3839 | 793.0 | 757.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 17.58 | 347.70 | -18.00 | 49.20 | 0.3908 | 934.0 | 779.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 16.51 | 347.64 | -18.06 | 51.53 | 0.3813 | 984.0 | 745.4 | |
| 5.72 | 8.72 | 3.07 | 4.67 | 16.41 | 347.35 | -18.35 | 52.16 | 0.3841 | 912.0 | 695.7 | |
| 0.00 | 4.36 | 0.00 | 2.34 | 16.97 | 347.29 | -18.41 | 51.04 | 0.3900 | 869.0 | 770.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.55 | 347.02 | -18.68 | 48.27 | 0.4086 | 731.0 | 481.0 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 18.33 | 347.01 | -18.69 | 48.72 | 0.4065 | 804.0 | 623.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 18.10 | 346.90 | -18.80 | 49.31 | 0.4056 | 749.0 | 624.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 17.97 | 346.75 | -18.95 | 49.79 | 0.4063 | 789.0 | 717.9 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 16.74 | 346.68 | -19.02 | 52.39 | 0.3957 | 711.0 | 574.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.09 | 345.11 | -20.59 | 53.70 | 0.4188 | 784.0 | 607.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 19.29 | 342.47 | -23.23 | 52.60 | 0.4706 | 768.0 | 676.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
