SDO HMI 2011-07-02 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 18.26 | 1.83 | 9.81 | 16.78 | 22.96 | 18.37 | 308.65 | 0.3881 | -263.7 | -472.3 | |
|
previous
or next observation for the same group /

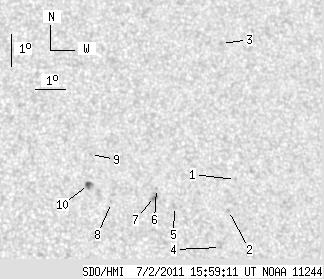

back to the solar disc SDO HMI 2011-07-02 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | 16.71 | 25.62 | 21.03 | 304.98 | 0.4212 | -687.0 | -587.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.75 | 25.28 | 20.68 | 303.37 | 0.4088 | -843.0 | -596.5 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 21.03 | 25.71 | 21.12 | 312.93 | 0.4612 | -844.0 | -641.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 14.60 | 24.89 | 20.30 | 301.32 | 0.3946 | -809.0 | -569.5 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 15.90 | 23.47 | 18.88 | 305.99 | 0.3863 | -909.0 | -612.1 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 16.47 | 22.93 | 18.34 | 307.99 | 0.3844 | -807.0 | -653.1 | |
| 0.00 | 4.18 | 0.00 | 2.24 | 16.22 | 22.84 | 18.24 | 307.59 | 0.3810 | -1042.0 | -925.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 16.06 | 21.39 | 16.80 | 309.41 | 0.3610 | 709.0 | 459.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.57 | 20.83 | 16.24 | 313.59 | 0.3696 | 674.0 | 548.2 | |
| 3.45 | 4.81 | 1.83 | 2.55 | 16.63 | 20.68 | 16.09 | 311.85 | 0.3579 | 930.0 | 684.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
