SDO HMI 2011-07-02 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.36 | 21.43 | 1.79 | 11.62 | 16.39 | 23.42 | 19.94 | 305.67 | 0.4062 | -90.9 | -295.6 | |
|
previous
or next observation for the same group /

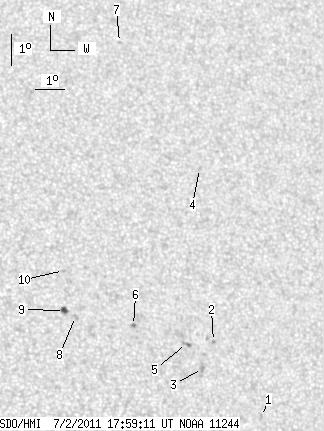

back to the solar disc SDO HMI 2011-07-02 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.04 | 13.24 | 26.83 | 23.35 | 295.25 | 0.4283 | 789.0 | 573.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 15.60 | 25.44 | 21.96 | 301.63 | 0.4248 | -742.0 | -602.5 | |
| 0.00 | 3.72 | 0.00 | 2.02 | 14.77 | 24.98 | 21.50 | 300.35 | 0.4123 | -859.0 | -736.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 21.08 | 25.70 | 22.22 | 311.66 | 0.4741 | -800.0 | -676.8 | |
| 0.00 | 3.27 | 0.00 | 1.78 | 15.56 | 24.52 | 21.04 | 302.55 | 0.4120 | -741.0 | -696.4 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 16.15 | 22.79 | 19.31 | 305.95 | 0.3940 | -1177.0 | -925.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 25.21 | 23.54 | 20.06 | 320.84 | 0.4932 | -636.0 | -554.4 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 16.46 | 20.88 | 17.40 | 309.35 | 0.3724 | 784.0 | 619.6 | |
| 3.36 | 3.54 | 1.79 | 1.89 | 16.66 | 20.53 | 17.05 | 310.31 | 0.3699 | 901.1 | 628.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 17.91 | 20.62 | 17.14 | 312.79 | 0.3837 | 788.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
