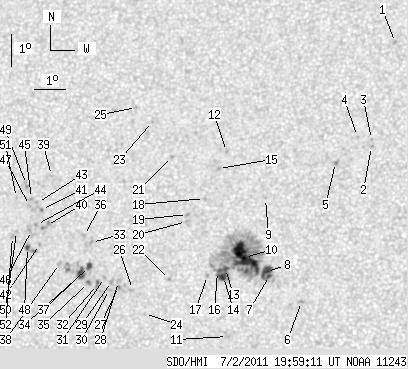

SDO HMI 2011-07-02 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.57 | 300.60 | 29.67 | 155.55 | 16.30 | 352.69 | -9.68 | 34.40 | 0.2851 | -205.7 | -105.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-02 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.67 | 23.07 | 359.00 | -3.37 | 8.96 | 0.3487 | 816.0 | 702.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 19.72 | 358.30 | -4.07 | 13.08 | 0.2966 | -843.0 | -693.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 19.95 | 358.29 | -4.08 | 12.92 | 0.3003 | -765.0 | -592.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 20.04 | 357.84 | -4.53 | 14.23 | 0.3036 | -790.0 | -563.1 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 19.21 | 357.15 | -5.22 | 17.12 | 0.2934 | -1137.0 | -861.4 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.84 | 356.19 | -6.18 | 26.88 | 0.2311 | -974.0 | -756.0 | |
| 1.00 | 189.40 | 0.51 | 97.36 | 15.64 | 355.15 | -7.22 | 28.93 | 0.2514 | -1128.3 | -444.8 | |
| 5.81 | -7.00 | 2.98 | -7.00 | 15.77 | 355.05 | -7.32 | 29.01 | 0.2541 | -1173.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.06 | 354.93 | -7.45 | 25.35 | 0.2890 | -677.0 | -581.6 | |
| 30.87 | -7.00 | 15.86 | -7.00 | 16.20 | 354.33 | -8.04 | 30.44 | 0.2664 | -1268.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.73 | 353.88 | -8.49 | 37.54 | 0.2364 | -854.0 | -692.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.54 | 353.59 | -8.79 | 26.79 | 0.3207 | -923.0 | -724.7 | |
| 2.27 | -7.00 | 1.17 | -7.00 | 15.85 | 353.73 | -8.64 | 32.96 | 0.2667 | -890.6 | 999999 | |
| 3.63 | -7.00 | 1.86 | -7.00 | 15.60 | 353.68 | -8.69 | 33.66 | 0.2637 | -1134.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.00 | 353.35 | -9.02 | 28.23 | 0.3146 | -928.0 | -759.5 | |
| 1.73 | -7.00 | 0.89 | -7.00 | 15.75 | 353.48 | -8.89 | 33.91 | 0.2677 | -659.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.63 | 353.17 | -9.20 | 35.11 | 0.2690 | -789.0 | -588.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.04 | 352.95 | -9.42 | 30.90 | 0.3044 | -867.0 | -595.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 17.53 | 352.43 | -9.94 | 33.21 | 0.3020 | -735.0 | -610.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.31 | 352.41 | -9.97 | 33.69 | 0.2991 | -747.0 | -622.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.36 | 351.83 | -10.55 | 31.44 | 0.3324 | -962.0 | -697.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.49 | 351.95 | -10.42 | 38.77 | 0.2795 | -756.0 | -594.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.47 | 351.09 | -11.28 | 31.34 | 0.3539 | -727.0 | -522.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.43 | 351.21 | -11.17 | 43.32 | 0.2746 | -781.0 | -578.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 20.91 | 350.52 | -11.85 | 31.88 | 0.3648 | -690.0 | -451.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 15.17 | 350.78 | -11.59 | 42.50 | 0.2883 | 815.0 | 586.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.26 | 350.32 | -12.05 | 43.36 | 0.2946 | 1107.0 | 965.0 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 15.41 | 350.31 | -12.06 | 43.01 | 0.2965 | 704.0 | 612.4 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 15.41 | 350.09 | -12.28 | 43.53 | 0.2991 | 888.0 | 694.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.16 | 350.04 | -12.33 | 44.25 | 0.2967 | 1019.0 | 746.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.53 | 349.85 | -12.52 | 43.76 | 0.3032 | 780.0 | 686.1 | |
| 0.00 | 3.63 | 0.00 | 1.89 | 15.31 | 349.64 | -12.73 | 44.76 | 0.3031 | 1179.0 | 904.5 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 16.62 | 349.36 | -13.01 | 42.35 | 0.3216 | 889.0 | 748.6 | |
| 3.36 | 27.69 | 1.75 | 14.45 | 15.87 | 349.35 | -13.03 | 44.08 | 0.3130 | 1000.7 | 777.5 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 15.37 | 349.35 | -13.03 | 45.26 | 0.3073 | 1125.0 | 959.5 | |
| 0.00 | 2.72 | 0.00 | 1.43 | 16.84 | 349.12 | -13.26 | 42.40 | 0.3269 | 796.0 | 597.2 | |
| 6.81 | -34.00 | 3.55 | -34.00 | 15.65 | 349.10 | -13.27 | 45.12 | 0.3133 | 1079.4 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 15.95 | 348.36 | -14.01 | 45.91 | 0.3255 | 851.0 | 654.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.72 | 347.88 | -14.49 | 41.04 | 0.3625 | 709.0 | 567.0 | |
| 0.00 | 4.27 | 0.00 | 2.25 | 17.14 | 347.85 | -14.53 | 44.29 | 0.3447 | 787.0 | 851.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.64 | 347.64 | -14.73 | 43.63 | 0.3527 | 911.0 | 779.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 16.54 | 347.66 | -14.71 | 45.93 | 0.3402 | 989.0 | 742.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.86 | 347.49 | -14.88 | 43.46 | 0.3569 | 823.0 | 672.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.17 | 347.51 | -14.86 | 44.86 | 0.3488 | 927.0 | 719.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 17.98 | 347.28 | -15.09 | 43.60 | 0.3607 | 754.0 | 665.1 | |
| 0.00 | 6.17 | 0.00 | 3.26 | 16.98 | 347.36 | -15.01 | 45.54 | 0.3485 | 622.0 | 618.5 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 17.76 | 347.23 | -15.14 | 44.14 | 0.3587 | 789.0 | 715.2 | |
| 2.09 | 5.27 | 1.10 | 2.77 | 16.44 | 347.28 | -15.10 | 46.87 | 0.3437 | 827.5 | 862.0 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 18.42 | 347.07 | -15.30 | 43.10 | 0.3679 | 671.0 | 618.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.94 | 346.87 | -15.50 | 46.51 | 0.3539 | 778.0 | 537.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 18.01 | 346.78 | -15.59 | 44.45 | 0.3666 | 727.0 | 493.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 16.78 | 346.75 | -15.62 | 47.06 | 0.3536 | 975.0 | 595.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
