SDO HMI 2011-07-02 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.39 | 294.11 | 30.04 | 151.68 | 16.32 | 353.12 | -8.69 | 31.67 | 0.2761 | -182.6 | -185.6 | |
|
previous
or next observation for the same group /

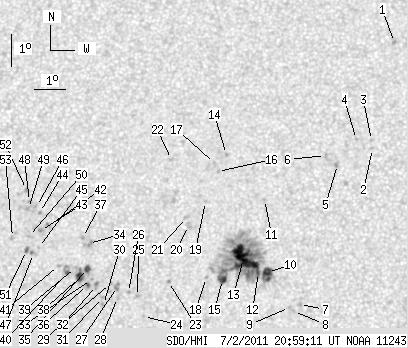

back to the solar disc SDO HMI 2011-07-02 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.06 | 23.14 | 359.01 | -2.81 | 7.45 | 0.3485 | 865.0 | 636.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.73 | 358.36 | -3.45 | 11.15 | 0.2945 | -662.0 | -603.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.99 | 358.32 | -3.49 | 11.09 | 0.2988 | -719.0 | -571.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 20.02 | 357.84 | -3.98 | 12.57 | 0.3010 | -772.0 | -521.5 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 19.22 | 357.24 | -4.58 | 15.10 | 0.2905 | -847.0 | -869.7 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 19.50 | 356.84 | -4.97 | 16.05 | 0.2968 | -758.0 | -627.8 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 14.82 | 356.15 | -5.67 | 25.01 | 0.2269 | -910.0 | -643.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.60 | 355.96 | -5.85 | 26.15 | 0.2249 | -838.0 | -619.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.72 | 355.83 | -5.98 | 26.40 | 0.2278 | -922.0 | -755.5 | |
| 7.35 | 194.22 | 3.76 | 99.67 | 15.81 | 355.10 | -6.72 | 26.91 | 0.2498 | -1091.8 | -456.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.10 | 354.92 | -6.90 | 23.65 | 0.2857 | -904.0 | -634.4 | |
| 1.82 | -10.00 | 0.93 | -10.00 | 15.81 | 354.81 | -7.00 | 27.88 | 0.2520 | -1255.1 | 999999 | |
| 30.42 | -10.00 | 15.61 | -10.00 | 16.24 | 354.32 | -7.50 | 28.66 | 0.2624 | -1249.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 19.52 | 353.62 | -8.20 | 25.28 | 0.3160 | -942.0 | -698.1 | |
| 5.18 | -10.00 | 2.65 | -10.00 | 15.58 | 353.67 | -8.14 | 32.04 | 0.2584 | -963.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 18.98 | 353.35 | -8.46 | 26.80 | 0.3100 | -873.0 | -680.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.23 | 353.24 | -8.57 | 26.71 | 0.3145 | -856.0 | -738.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.64 | 353.16 | -8.66 | 33.49 | 0.2639 | -734.0 | -603.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.02 | 353.01 | -8.80 | 29.28 | 0.2988 | -877.0 | -595.2 | |
| 0.00 | 3.72 | 0.00 | 1.93 | 17.26 | 352.50 | -9.31 | 32.06 | 0.2925 | -642.0 | -611.0 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.51 | 352.42 | -9.39 | 31.80 | 0.2966 | -756.0 | -563.2 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 19.34 | 351.83 | -9.99 | 30.13 | 0.3273 | -979.0 | -561.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.50 | 351.95 | -9.87 | 37.28 | 0.2739 | -671.0 | -504.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.41 | 351.20 | -10.62 | 41.98 | 0.2680 | -805.0 | -554.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 15.03 | 350.97 | -10.84 | 41.00 | 0.2781 | 900.0 | 643.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.15 | 350.68 | -11.14 | 41.45 | 0.2829 | 882.0 | 676.4 | |
| 0.00 | 4.27 | 0.00 | 2.21 | 15.33 | 350.31 | -11.50 | 41.90 | 0.2892 | 779.0 | 839.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.99 | 350.33 | -11.48 | 42.69 | 0.2849 | 881.0 | 688.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.42 | 350.08 | -11.73 | 42.24 | 0.2929 | 975.0 | 792.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.77 | 349.89 | -11.92 | 44.29 | 0.2873 | 846.0 | 693.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.99 | 349.85 | -11.97 | 43.85 | 0.2904 | 935.0 | 619.7 | |
| 0.00 | 3.18 | 0.00 | 1.65 | 15.36 | 349.63 | -12.18 | 43.44 | 0.2972 | 1268.0 | 939.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.54 | 349.46 | -12.35 | 43.39 | 0.3014 | 865.0 | 725.1 | |
| 0.00 | 4.90 | 0.00 | 2.56 | 16.67 | 349.29 | -12.52 | 41.21 | 0.3167 | 919.0 | 763.7 | |
| 3.45 | 12.17 | 1.80 | 6.33 | 15.88 | 349.31 | -12.51 | 42.93 | 0.3071 | 1000.5 | 863.5 | |
| 1.82 | 1.91 | 0.94 | 0.99 | 15.39 | 349.34 | -12.47 | 44.04 | 0.3009 | 1008.7 | 823.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.85 | 349.08 | -12.73 | 41.27 | 0.3212 | 886.0 | 702.7 | |
| 4.81 | -35.00 | 2.50 | -35.00 | 15.60 | 349.07 | -12.75 | 44.12 | 0.3066 | 1097.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 15.91 | 348.92 | -12.90 | 43.72 | 0.3119 | 642.0 | 655.2 | |
| 1.63 | 5.36 | 0.85 | 2.79 | 15.75 | 348.67 | -13.15 | 44.63 | 0.3130 | 952.3 | 813.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 15.97 | 348.36 | -13.45 | 44.77 | 0.3190 | 859.0 | 701.6 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 17.22 | 347.94 | -13.87 | 42.86 | 0.3381 | 844.0 | 694.3 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 17.06 | 347.69 | -14.12 | 43.70 | 0.3391 | 1169.0 | 943.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 17.62 | 347.62 | -14.20 | 42.66 | 0.3465 | 938.0 | 807.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 16.52 | 347.67 | -14.15 | 44.91 | 0.3334 | 948.0 | 757.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 17.81 | 347.50 | -14.32 | 42.50 | 0.3499 | 726.0 | 627.9 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 16.33 | 347.52 | -14.30 | 45.62 | 0.3330 | 865.0 | 844.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.96 | 347.26 | -14.56 | 42.65 | 0.3544 | 827.0 | 667.7 | |
| 0.00 | 3.18 | 0.00 | 1.68 | 17.74 | 347.24 | -14.57 | 43.13 | 0.3521 | 881.0 | 689.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 16.86 | 347.31 | -14.50 | 44.85 | 0.3413 | 784.0 | 617.5 | |
| 1.91 | 2.27 | 1.00 | 1.19 | 16.42 | 347.28 | -14.53 | 45.87 | 0.3368 | 849.9 | 860.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 18.34 | 347.12 | -14.69 | 42.15 | 0.3602 | 856.0 | 717.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 16.83 | 346.79 | -15.03 | 45.91 | 0.3470 | 781.0 | 562.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
