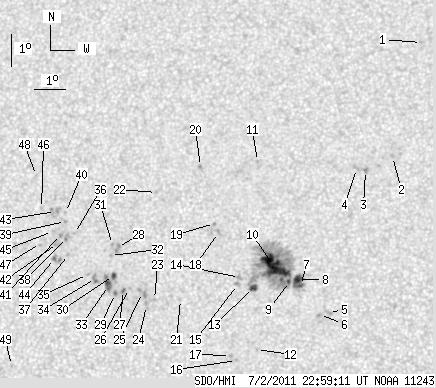

SDO HMI 2011-07-02 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.21 | 257.45 | 27.79 | 132.52 | 16.28 | 352.83 | -7.87 | 29.11 | 0.2688 | -201.2 | -128.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-02 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 23.39 | 359.00 | -1.71 | 4.51 | 0.3505 | 720.0 | 587.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.72 | 358.10 | -2.61 | 8.48 | 0.2917 | -808.0 | -663.7 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 19.27 | 357.23 | -3.47 | 11.55 | 0.2868 | -1152.0 | -878.8 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 19.34 | 356.94 | -3.77 | 12.44 | 0.2889 | -791.0 | -695.4 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 14.81 | 356.15 | -4.56 | 20.62 | 0.2192 | -872.0 | -650.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.74 | 355.86 | -4.84 | 21.89 | 0.2200 | -894.0 | -746.4 | |
| 1.91 | 156.83 | 0.97 | 80.29 | 15.64 | 355.24 | -5.47 | 22.77 | 0.2381 | -1034.1 | -478.7 | |
| 5.18 | -7.00 | 2.64 | -7.00 | 15.83 | 355.14 | -5.57 | 22.82 | 0.2417 | -1181.9 | 999999 | |
| 1.45 | -7.00 | 0.74 | -7.00 | 15.77 | 354.89 | -5.82 | 23.85 | 0.2424 | -1132.5 | 999999 | |
| 31.78 | -7.00 | 16.27 | -7.00 | 16.23 | 354.39 | -6.31 | 24.78 | 0.2530 | -1251.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.54 | 353.72 | -6.99 | 21.94 | 0.3081 | -945.0 | -716.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.65 | 353.90 | -6.81 | 31.96 | 0.2185 | -877.0 | -671.9 | |
| 4.36 | -7.00 | 2.23 | -7.00 | 15.57 | 353.75 | -6.96 | 28.22 | 0.2480 | -1035.5 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.63 | 15.88 | 353.29 | -7.42 | 29.13 | 0.2563 | -713.0 | -576.4 | |
| 0.00 | 3.27 | 0.00 | 1.67 | 15.66 | 353.23 | -7.47 | 29.75 | 0.2535 | -345.0 | -308.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.30 | 353.28 | -7.43 | 35.14 | 0.2195 | -812.0 | -669.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.45 | 353.09 | -7.62 | 35.41 | 0.2236 | -880.0 | -708.6 | |
| 0.00 | 3.27 | 0.00 | 1.69 | 17.29 | 352.56 | -8.15 | 28.74 | 0.2827 | -876.0 | -696.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.57 | 352.42 | -8.29 | 28.66 | 0.2880 | -732.0 | -541.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 19.37 | 351.87 | -8.84 | 27.21 | 0.3184 | -964.0 | -604.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.18 | 351.43 | -9.28 | 36.38 | 0.2635 | 742.0 | 540.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 18.53 | 350.48 | -10.23 | 32.13 | 0.3179 | -647.0 | -523.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.18 | 350.60 | -10.11 | 38.73 | 0.2719 | 946.0 | 671.5 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 14.99 | 350.35 | -10.36 | 39.86 | 0.2721 | 566.0 | 580.2 | |
| 0.00 | 4.27 | 0.00 | 2.20 | 15.39 | 350.20 | -10.50 | 39.28 | 0.2789 | 726.0 | 863.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 15.51 | 349.78 | -10.93 | 40.09 | 0.2849 | 848.0 | 714.9 | |
| 1.27 | 2.00 | 0.66 | 1.03 | 15.45 | 349.59 | -11.12 | 40.72 | 0.2862 | 1001.8 | 1078.4 | |
| 0.00 | 3.81 | 0.00 | 1.98 | 16.79 | 349.32 | -11.39 | 38.37 | 0.3060 | 837.0 | 825.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 15.35 | 349.34 | -11.37 | 41.57 | 0.2878 | 1109.0 | 978.3 | |
| 2.36 | 12.90 | 1.22 | 6.68 | 15.91 | 349.24 | -11.47 | 40.49 | 0.2958 | 977.7 | 855.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.88 | 349.15 | -11.56 | 38.57 | 0.3089 | 842.0 | 654.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.54 | 349.10 | -11.60 | 39.42 | 0.3050 | 894.0 | 767.0 | |
| 5.54 | -30.00 | 2.87 | -30.00 | 15.60 | 349.10 | -11.61 | 41.56 | 0.2935 | 1114.0 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.31 | 15.81 | 348.66 | -12.04 | 42.08 | 0.3009 | 970.0 | 868.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.93 | 348.40 | -12.31 | 42.41 | 0.3054 | 802.0 | 572.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 17.21 | 347.89 | -12.82 | 40.71 | 0.3263 | 876.0 | 680.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.55 | 347.74 | -12.97 | 42.46 | 0.3201 | 948.0 | 754.8 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 17.09 | 347.67 | -13.04 | 41.45 | 0.3272 | 926.0 | 864.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.59 | 347.57 | -13.14 | 40.62 | 0.3343 | 974.0 | 818.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 17.87 | 347.54 | -13.16 | 40.09 | 0.3380 | 777.0 | 531.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.18 | 347.43 | -13.28 | 41.76 | 0.3309 | 910.0 | 807.1 | |
| 0.00 | 4.36 | 0.00 | 2.29 | 16.89 | 347.35 | -13.35 | 42.52 | 0.3284 | 622.0 | 721.0 | |
| 0.00 | 8.45 | 0.00 | 4.45 | 17.90 | 347.21 | -13.49 | 40.72 | 0.3419 | 792.0 | 711.4 | |
| 0.36 | 4.81 | 0.19 | 2.52 | 16.42 | 347.29 | -13.42 | 43.69 | 0.3236 | 995.0 | 855.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 17.27 | 347.16 | -13.55 | 42.12 | 0.3349 | 654.0 | 478.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 17.99 | 346.74 | -13.96 | 41.48 | 0.3480 | 504.0 | 359.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 16.89 | 346.80 | -13.91 | 43.67 | 0.3346 | 488.0 | 576.7 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 19.03 | 346.49 | -14.22 | 39.95 | 0.3631 | 572.0 | 377.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.08 | 346.11 | -14.59 | 54.34 | 0.3034 | 821.0 | 559.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
