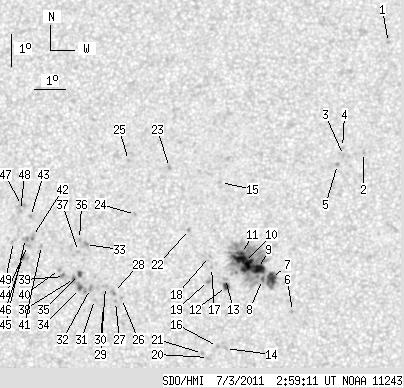

SDO HMI 2011-07-03 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.68 | 227.16 | 24.34 | 116.33 | 16.32 | 353.13 | -5.37 | 20.81 | 0.2511 | -281.8 | -159.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 23.33 | 359.01 | 0.51 | 358.66 | 0.3480 | 789.0 | 650.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 19.79 | 358.19 | -0.32 | 1.03 | 0.2892 | -865.0 | -715.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.70 | 357.54 | -0.96 | 3.16 | 0.2880 | -796.0 | -606.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.95 | 357.51 | -1.00 | 3.22 | 0.2923 | -707.0 | -547.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 19.41 | 357.35 | -1.15 | 3.86 | 0.2834 | -1025.0 | -829.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.79 | 355.96 | -2.55 | 11.93 | 0.2087 | -1079.0 | -859.9 | |
| 6.99 | 140.35 | 3.56 | 71.59 | 15.81 | 355.28 | -3.22 | 13.77 | 0.2284 | -1189.7 | -503.3 | |
| 1.36 | -7.00 | 0.69 | -7.00 | 15.78 | 354.99 | -3.51 | 14.97 | 0.2291 | -1050.1 | 999999 | |
| 8.99 | -7.00 | 4.58 | -7.00 | 16.13 | 354.86 | -3.64 | 15.10 | 0.2353 | -1220.9 | 999999 | |
| 18.99 | -7.00 | 9.69 | -7.00 | 16.31 | 354.41 | -4.09 | 16.62 | 0.2404 | -1243.7 | 999999 | |
| 1.82 | -7.00 | 0.93 | -7.00 | 16.59 | 354.31 | -4.19 | 16.66 | 0.2455 | -1006.4 | 999999 | |
| 3.54 | 4.09 | 1.80 | 2.08 | 15.56 | 353.86 | -4.65 | 19.82 | 0.2312 | -1067.4 | -856.7 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.81 | 353.82 | -4.68 | 19.59 | 0.2354 | -824.0 | -673.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 13.63 | 353.86 | -4.64 | 23.17 | 0.2006 | -789.0 | -659.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.83 | 353.58 | -4.92 | 16.63 | 0.2850 | -626.0 | -510.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.69 | 353.61 | -4.89 | 24.16 | 0.2033 | -944.0 | -778.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.15 | 353.36 | -5.14 | 20.78 | 0.2435 | -726.0 | -518.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.50 | 353.29 | -5.21 | 20.53 | 0.2494 | -683.0 | -479.0 | |
| 0.00 | 3.18 | 0.00 | 1.62 | 15.74 | 353.28 | -5.22 | 21.73 | 0.2376 | -721.0 | -652.0 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 13.35 | 353.34 | -5.17 | 26.10 | 0.2000 | -822.0 | -744.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.47 | 353.14 | -5.36 | 26.65 | 0.2034 | -922.0 | -709.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 17.34 | 352.63 | -5.88 | 21.59 | 0.2667 | -992.0 | -759.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 19.30 | 351.91 | -6.59 | 21.16 | 0.3015 | -969.0 | -721.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.80 | 350.87 | -7.63 | 26.39 | 0.2858 | -897.0 | -682.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.51 | 350.56 | -7.94 | 24.65 | 0.3134 | -813.0 | -651.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.17 | 350.53 | -7.97 | 32.49 | 0.2503 | 692.0 | 569.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.07 | 350.34 | -8.16 | 33.31 | 0.2507 | 923.0 | 743.2 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 15.35 | 350.27 | -8.24 | 32.92 | 0.2553 | 894.0 | 811.2 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 15.54 | 350.00 | -8.50 | 33.32 | 0.2604 | 899.0 | 770.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.94 | 349.96 | -8.54 | 34.79 | 0.2525 | 731.0 | 575.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.13 | 349.67 | -8.83 | 35.26 | 0.2579 | 909.0 | 617.7 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 15.47 | 349.53 | -8.98 | 34.90 | 0.2640 | 1193.0 | 937.6 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 16.85 | 349.30 | -9.20 | 32.64 | 0.2850 | 983.0 | 869.0 | |
| 1.54 | 10.17 | 0.79 | 5.23 | 15.47 | 349.21 | -9.30 | 35.84 | 0.2671 | 1043.2 | 941.3 | |
| 2.36 | 2.63 | 1.22 | 1.36 | 15.90 | 349.15 | -9.35 | 35.02 | 0.2735 | 978.4 | 908.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.00 | 349.10 | -9.40 | 32.89 | 0.2890 | 901.0 | 760.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.62 | 349.09 | -9.42 | 33.68 | 0.2839 | 947.0 | 699.2 | |
| 0.55 | -34.00 | 0.28 | -34.00 | 15.78 | 349.00 | -9.50 | 35.73 | 0.2733 | 1110.2 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.01 | 15.84 | 348.67 | -9.83 | 36.50 | 0.2773 | 862.0 | 786.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.06 | 348.50 | -10.00 | 36.48 | 0.2819 | 848.0 | 626.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.80 | 347.88 | -10.62 | 36.51 | 0.2979 | 868.0 | 760.6 | |
| 0.00 | 2.63 | 0.00 | 1.37 | 17.08 | 347.57 | -10.93 | 36.69 | 0.3046 | 1008.0 | 878.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.71 | 347.47 | -11.03 | 35.69 | 0.3139 | 1034.0 | 841.8 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 16.80 | 347.43 | -11.07 | 37.64 | 0.3024 | 892.0 | 742.7 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 17.02 | 347.35 | -11.15 | 37.38 | 0.3060 | 780.0 | 745.6 | |
| 1.54 | 4.27 | 0.80 | 2.22 | 16.42 | 347.29 | -11.21 | 38.80 | 0.2990 | 902.5 | 844.4 | |
| 0.00 | 3.63 | 0.00 | 1.90 | 18.05 | 347.15 | -11.35 | 35.77 | 0.3215 | 816.0 | 755.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.90 | 347.13 | -11.37 | 36.13 | 0.3196 | 947.0 | 782.6 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 16.92 | 346.97 | -11.54 | 38.50 | 0.3087 | 452.0 | 523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
