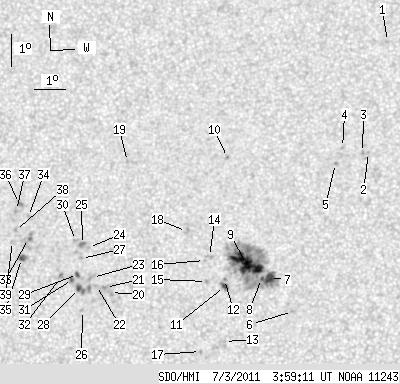

SDO HMI 2011-07-03 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.51 | 238.27 | 25.26 | 121.86 | 16.35 | 353.18 | -4.78 | 18.62 | 0.2480 | -313.6 | -139.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.67 | 23.37 | 359.06 | 1.10 | 357.08 | 0.3489 | 706.0 | 559.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 19.80 | 358.41 | 0.46 | 358.50 | 0.2892 | -814.0 | -628.7 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 19.80 | 358.22 | 0.27 | 359.13 | 0.2892 | -925.0 | -728.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.96 | 357.57 | -0.38 | 1.24 | 0.2919 | -666.0 | -491.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 19.45 | 357.35 | -0.61 | 2.03 | 0.2834 | -999.0 | -844.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.79 | 356.01 | -1.95 | 9.18 | 0.2068 | -1020.0 | -776.8 | |
| 7.54 | 151.72 | 3.83 | 77.32 | 15.85 | 355.27 | -2.69 | 11.51 | 0.2269 | -1159.2 | -468.8 | |
| 1.45 | -7.00 | 0.74 | -7.00 | 15.82 | 355.01 | -2.94 | 12.60 | 0.2273 | -1111.0 | 999999 | |
| 31.16 | -7.00 | 15.89 | -7.00 | 16.29 | 354.53 | -3.42 | 14.07 | 0.2369 | -1233.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.63 | 353.85 | -4.11 | 13.30 | 0.2944 | -899.0 | -690.3 | |
| 3.00 | 4.27 | 1.53 | 2.17 | 15.57 | 353.84 | -4.11 | 17.68 | 0.2283 | -1045.5 | -788.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.79 | 353.84 | -4.11 | 17.40 | 0.2319 | -866.0 | -732.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.86 | 353.88 | -4.08 | 20.23 | 0.2005 | -865.0 | -588.2 | |
| 0.00 | 3.00 | 0.00 | 1.53 | 16.50 | 353.35 | -4.61 | 18.32 | 0.2460 | -572.0 | -451.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 15.72 | 353.27 | -4.68 | 19.72 | 0.2339 | -770.0 | -664.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.38 | 353.19 | -4.76 | 19.07 | 0.2449 | -652.0 | -499.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.54 | 353.13 | -4.83 | 24.20 | 0.2004 | -864.0 | -643.7 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 17.29 | 352.59 | -5.36 | 19.95 | 0.2627 | -761.0 | -653.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 19.49 | 350.60 | -7.35 | 23.08 | 0.3091 | -857.0 | -565.9 | |
| 0.00 | 3.54 | 0.00 | 1.81 | 15.36 | 350.23 | -7.73 | 31.28 | 0.2508 | 796.0 | 627.9 | |
| 0.00 | 3.18 | 0.00 | 1.63 | 15.52 | 350.06 | -7.89 | 31.49 | 0.2545 | 974.0 | 714.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.58 | 349.77 | -8.18 | 32.27 | 0.2579 | 789.0 | 652.0 | |
| 0.00 | 2.82 | 0.00 | 1.45 | 15.83 | 349.63 | -8.32 | 32.17 | 0.2627 | 646.0 | 540.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.76 | 349.46 | -8.49 | 30.78 | 0.2775 | 971.0 | 774.3 | |
| 0.00 | 3.72 | 0.00 | 1.92 | 16.86 | 349.27 | -8.69 | 31.18 | 0.2805 | 991.0 | 864.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.79 | 349.35 | -8.60 | 35.35 | 0.2510 | 785.0 | 671.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.42 | 349.25 | -8.70 | 32.08 | 0.2744 | 814.0 | 644.2 | |
| 2.45 | 9.72 | 1.26 | 4.99 | 15.48 | 349.20 | -8.75 | 34.24 | 0.2619 | 1028.7 | 946.8 | |
| 2.27 | 2.36 | 1.17 | 1.21 | 15.92 | 349.15 | -8.81 | 33.44 | 0.2684 | 1028.7 | 821.0 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 16.98 | 349.03 | -8.92 | 31.60 | 0.2843 | 872.0 | 686.2 | |
| 0.82 | 2.36 | 0.42 | 1.21 | 15.76 | 348.99 | -8.96 | 34.23 | 0.2676 | 1090.7 | 959.6 | |
| 0.00 | 3.72 | 0.00 | 1.92 | 15.82 | 348.61 | -9.35 | 35.22 | 0.2722 | 783.0 | 720.0 | |
| 0.00 | 5.36 | 0.00 | 2.78 | 17.03 | 347.51 | -10.44 | 35.59 | 0.2991 | 960.0 | 845.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.72 | 347.47 | -10.48 | 34.32 | 0.3087 | 914.0 | 740.5 | |
| 0.82 | 5.18 | 0.42 | 2.68 | 16.40 | 347.32 | -10.63 | 37.40 | 0.2927 | 1041.4 | 764.7 | |
| 0.00 | 3.82 | 0.00 | 1.99 | 18.13 | 347.15 | -10.80 | 34.33 | 0.3171 | 855.0 | 751.5 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 17.91 | 347.07 | -10.88 | 34.96 | 0.3150 | 842.0 | 723.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.28 | 347.07 | -10.88 | 36.18 | 0.3066 | 816.0 | 594.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.93 | 347.00 | -10.95 | 37.08 | 0.3028 | 670.0 | 657.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
