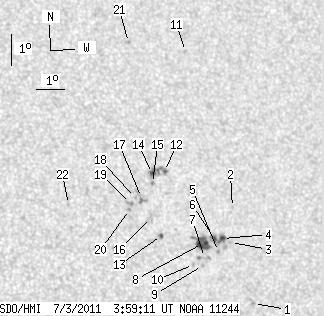

SDO HMI 2011-07-03 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.80 | 78.41 | 12.99 | 44.61 | 16.03 | 24.78 | 26.83 | 297.93 | 0.4935 | -485.0 | -297.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.99 | 13.30 | 26.94 | 28.99 | 291.34 | 0.5083 | 819.0 | 634.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 16.31 | 26.62 | 28.67 | 297.07 | 0.5191 | -597.0 | -468.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 15.22 | 26.38 | 28.43 | 295.25 | 0.5099 | -554.0 | -466.7 | |
| 2.63 | 32.43 | 1.51 | 18.54 | 15.35 | 26.11 | 28.16 | 295.68 | 0.5070 | -790.3 | -648.8 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 14.95 | 25.91 | 27.96 | 295.07 | 0.5021 | -779.0 | -582.2 | |
| 2.36 | -4.00 | 1.35 | -4.00 | 15.36 | 25.83 | 27.87 | 295.89 | 0.5031 | -805.5 | 999999 | |
| 0.00 | 4.00 | 0.00 | 2.27 | 14.77 | 25.39 | 27.43 | 295.10 | 0.4939 | -630.0 | -703.9 | |
| 12.90 | -4.00 | 7.35 | -4.00 | 15.21 | 25.38 | 27.42 | 295.94 | 0.4962 | -962.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 14.53 | 25.28 | 27.33 | 294.70 | 0.4911 | -690.0 | -622.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.56 | 24.97 | 27.02 | 295.00 | 0.4870 | -992.0 | -707.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 21.28 | 25.81 | 27.86 | 306.17 | 0.5415 | -702.0 | -554.4 | |
| 1.18 | 12.08 | 0.67 | 6.87 | 17.49 | 24.36 | 26.41 | 300.96 | 0.4966 | 492.4 | 630.8 | |
| 1.64 | 1.73 | 0.92 | 0.97 | 15.49 | 23.96 | 26.01 | 297.54 | 0.4785 | 727.8 | 810.0 | |
| 2.09 | -12.00 | 1.19 | -12.00 | 17.44 | 23.93 | 25.97 | 301.23 | 0.4906 | 902.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.13 | 23.88 | 25.93 | 300.70 | 0.4879 | 900.0 | 712.6 | |
| 0.00 | 3.63 | 0.00 | 2.05 | 16.06 | 23.69 | 25.74 | 298.86 | 0.4784 | -94.0 | 32.4 | |
| 0.00 | 6.27 | 0.00 | 3.53 | 16.70 | 23.43 | 25.47 | 300.29 | 0.4790 | -647.0 | -511.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 16.70 | 23.22 | 25.26 | 300.48 | 0.4762 | -761.0 | -601.3 | |
| 0.00 | 3.18 | 0.00 | 1.79 | 16.52 | 23.01 | 25.06 | 300.31 | 0.4723 | -990.0 | -749.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 16.33 | 22.95 | 25.00 | 300.01 | 0.4702 | -959.0 | -752.2 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 21.62 | 23.79 | 25.83 | 308.58 | 0.5202 | -759.0 | -620.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.53 | 20.86 | 22.90 | 302.41 | 0.4437 | 652.0 | 434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
