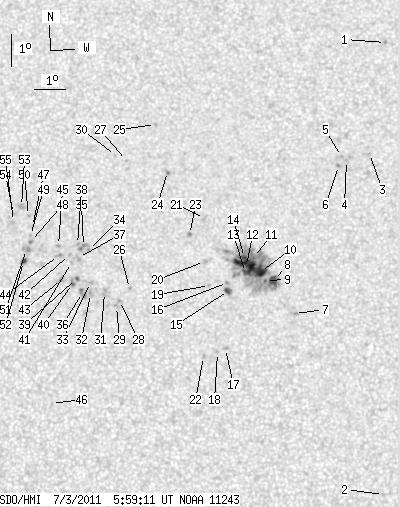

SDO HMI 2011-07-03 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.07 | 242.22 | 23.99 | 123.76 | 16.36 | 353.09 | -3.76 | 12.56 | 0.2435 | -209.2 | -123.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.82 | 23.45 | 358.99 | 2.13 | 354.40 | 0.3512 | 933.0 | 742.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 9.25 | 358.78 | 1.92 | 342.91 | 0.1131 | -821.0 | -485.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 19.88 | 358.42 | 1.56 | 354.93 | 0.2914 | -842.0 | -647.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 19.65 | 357.67 | 0.81 | 357.31 | 0.2868 | -902.0 | -786.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 19.78 | 357.51 | 0.65 | 357.86 | 0.2888 | -780.0 | -692.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.49 | 357.41 | 0.56 | 358.15 | 0.2840 | -1034.0 | -845.8 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 14.84 | 356.01 | -0.85 | 4.00 | 0.2053 | -983.0 | -675.2 | |
| 7.00 | 145.83 | 3.56 | 74.25 | 15.87 | 355.34 | -1.52 | 6.55 | 0.2239 | -1137.3 | -500.5 | |
| 1.00 | -8.00 | 0.51 | -8.00 | 15.87 | 355.09 | -1.77 | 7.64 | 0.2244 | -1064.5 | 999999 | |
| 9.54 | -8.00 | 4.86 | -8.00 | 16.15 | 354.93 | -1.93 | 8.14 | 0.2295 | -1185.2 | 999999 | |
| 0.36 | -8.00 | 0.19 | -8.00 | 16.59 | 354.70 | -2.16 | 8.78 | 0.2375 | -729.8 | 999999 | |
| 17.17 | -8.00 | 8.75 | -8.00 | 16.34 | 354.48 | -2.38 | 9.84 | 0.2339 | -1261.6 | 999999 | |
| 2.18 | -8.00 | 1.11 | -8.00 | 16.12 | 354.45 | -2.41 | 10.13 | 0.2303 | -1029.4 | 999999 | |
| 2.18 | -8.00 | 1.11 | -8.00 | 16.59 | 354.41 | -2.44 | 9.92 | 0.2382 | -995.4 | 999999 | |
| 3.91 | 4.09 | 1.98 | 2.08 | 15.56 | 353.92 | -2.94 | 12.87 | 0.2226 | -1029.7 | -1013.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.80 | 353.88 | -2.97 | 12.76 | 0.2269 | -931.0 | -748.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 13.75 | 353.85 | -3.01 | 15.39 | 0.1930 | -958.0 | -750.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.63 | 353.60 | -3.26 | 16.78 | 0.1921 | -939.0 | -738.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.71 | 353.31 | -3.54 | 15.21 | 0.2277 | -806.0 | -570.5 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 16.46 | 353.14 | -3.72 | 15.02 | 0.2408 | -749.0 | -661.3 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 17.81 | 353.11 | -3.74 | 13.73 | 0.2630 | -755.0 | -613.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 13.50 | 353.16 | -3.70 | 19.10 | 0.1924 | -901.0 | -667.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.31 | 352.65 | -4.21 | 15.92 | 0.2568 | -997.0 | -864.8 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 19.29 | 351.88 | -4.97 | 16.32 | 0.2924 | -936.0 | -787.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.79 | 351.44 | -5.41 | 16.16 | 0.3183 | -665.0 | -585.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.60 | 350.78 | -6.08 | 25.17 | 0.2410 | 799.0 | 696.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 19.64 | 350.54 | -6.32 | 19.97 | 0.3048 | -842.0 | -651.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.23 | 350.47 | -6.39 | 26.99 | 0.2376 | 809.0 | 556.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 15.04 | 350.38 | -6.48 | 27.69 | 0.2355 | 753.0 | 723.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.79 | 350.18 | -6.68 | 20.82 | 0.3094 | -719.0 | -525.0 | |
| 0.00 | 4.09 | 0.00 | 2.09 | 15.48 | 349.98 | -6.87 | 28.21 | 0.2451 | 766.0 | 752.8 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 15.44 | 349.54 | -7.32 | 29.79 | 0.2483 | 1063.0 | 802.7 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 15.78 | 349.53 | -7.33 | 29.13 | 0.2534 | 906.0 | 698.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.79 | 349.42 | -7.43 | 27.55 | 0.2689 | 890.0 | 804.6 | |
| 0.00 | 4.00 | 0.00 | 2.06 | 16.91 | 349.26 | -7.60 | 27.84 | 0.2721 | 999.0 | 941.8 | |
| 0.00 | 4.54 | 0.00 | 2.32 | 15.47 | 349.28 | -7.57 | 30.57 | 0.2509 | 1072.0 | 1002.1 | |
| 0.00 | 2.82 | 0.00 | 1.45 | 16.56 | 349.11 | -7.74 | 28.93 | 0.2682 | 791.0 | 768.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.97 | 349.06 | -7.79 | 28.33 | 0.2745 | 837.0 | 659.8 | |
| 0.55 | 5.00 | 0.28 | 2.56 | 15.91 | 349.07 | -7.78 | 30.34 | 0.2589 | 1060.7 | 864.6 | |
| 0.36 | -39.00 | 0.19 | -39.00 | 15.75 | 348.95 | -7.90 | 31.05 | 0.2577 | 1098.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.41 | 348.89 | -7.96 | 29.91 | 0.2677 | 927.0 | 654.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.66 | 348.82 | -8.04 | 29.66 | 0.2719 | 886.0 | 746.9 | |
| 0.00 | 2.82 | 0.00 | 1.45 | 15.87 | 348.60 | -8.26 | 31.91 | 0.2626 | 1025.0 | 769.0 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 16.62 | 348.47 | -8.39 | 30.78 | 0.2744 | 943.0 | 763.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 16.94 | 348.45 | -8.40 | 30.22 | 0.2790 | 888.0 | 744.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.02 | 348.42 | -8.44 | 42.62 | 0.2129 | 799.0 | 633.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.53 | 347.59 | -9.27 | 31.56 | 0.2949 | 828.0 | 608.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.05 | 347.55 | -9.31 | 32.57 | 0.2886 | 1048.0 | 913.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.24 | 347.54 | -9.32 | 32.23 | 0.2913 | 851.0 | 734.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.87 | 347.44 | -9.42 | 31.32 | 0.3010 | 892.0 | 736.9 | |
| 0.00 | 4.18 | 0.00 | 2.16 | 16.80 | 347.43 | -9.43 | 33.39 | 0.2862 | 935.0 | 791.7 | |
| 2.82 | 3.36 | 1.45 | 1.74 | 16.43 | 347.35 | -9.51 | 34.38 | 0.2818 | 918.3 | 583.1 | |
| 0.00 | 4.00 | 0.00 | 2.08 | 18.15 | 347.19 | -9.66 | 31.45 | 0.3070 | 1036.0 | 754.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.93 | 346.95 | -9.91 | 32.50 | 0.3061 | 815.0 | 552.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.68 | 346.96 | -9.90 | 32.93 | 0.3025 | 764.0 | 685.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
