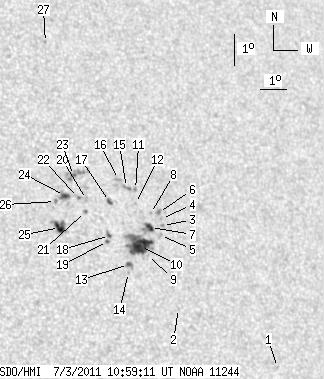

SDO HMI 2011-07-03 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.78 | 121.01 | 24.15 | 71.68 | 15.90 | 25.25 | 31.13 | 294.78 | 0.5499 | -474.7 | -249.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.51 | 11.26 | 30.58 | 36.47 | 284.65 | 0.6047 | -618.0 | -517.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 13.19 | 27.11 | 32.99 | 289.11 | 0.5632 | 583.0 | 496.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 15.78 | 26.94 | 32.83 | 293.60 | 0.5714 | -723.0 | -669.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.00 | 26.95 | 32.83 | 293.96 | 0.5724 | -801.0 | -588.4 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 15.47 | 26.81 | 32.69 | 293.15 | 0.5683 | -787.0 | -577.7 | |
| 0.00 | 2.63 | 0.00 | 1.59 | 16.19 | 26.87 | 32.75 | 294.32 | 0.5723 | -902.0 | -659.8 | |
| 3.72 | 48.70 | 2.23 | 29.00 | 15.73 | 26.48 | 32.36 | 293.76 | 0.5651 | -870.7 | -555.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 16.17 | 26.56 | 32.44 | 294.45 | 0.5682 | -473.0 | -406.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 14.86 | 26.22 | 32.10 | 292.42 | 0.5578 | -453.0 | -502.4 | |
| 21.08 | -7.00 | 12.55 | -7.00 | 15.15 | 26.01 | 31.89 | 293.03 | 0.5562 | -953.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 16.93 | 26.14 | 32.02 | 295.97 | 0.5664 | -741.0 | -651.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 16.50 | 26.06 | 31.94 | 295.28 | 0.5631 | 496.0 | 430.4 | |
| 1.73 | 3.63 | 1.02 | 2.15 | 14.60 | 25.47 | 31.35 | 292.36 | 0.5466 | -828.7 | -650.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 14.36 | 25.43 | 31.31 | 291.95 | 0.5449 | -695.0 | -573.8 | |
| 0.00 | 3.36 | 0.00 | 2.01 | 17.01 | 25.82 | 31.70 | 296.28 | 0.5625 | -807.0 | -664.5 | |
| 0.00 | 2.54 | 0.00 | 1.52 | 17.27 | 25.57 | 31.45 | 296.87 | 0.5606 | -836.0 | -658.8 | |
| 2.27 | 2.73 | 1.35 | 1.62 | 16.59 | 25.10 | 30.99 | 296.00 | 0.5511 | 542.4 | 390.0 | |
| 1.27 | 3.27 | 0.75 | 1.93 | 15.52 | 24.92 | 30.80 | 294.28 | 0.5434 | 539.7 | 124.0 | |
| 0.45 | 1.18 | 0.27 | 0.69 | 15.34 | 24.82 | 30.70 | 294.02 | 0.5411 | 725.0 | 539.8 | |
| 0.00 | 2.63 | 0.00 | 1.55 | 16.67 | 24.27 | 30.15 | 296.67 | 0.5405 | -746.0 | -618.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 16.30 | 24.17 | 30.05 | 296.09 | 0.5372 | 466.0 | 459.7 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 16.74 | 23.99 | 29.87 | 296.98 | 0.5372 | -782.0 | -604.7 | |
| 1.27 | 13.36 | 0.75 | 7.86 | 17.44 | 23.92 | 29.81 | 298.22 | 0.5403 | 860.4 | 659.6 | |
| 3.54 | 7.27 | 2.07 | 4.24 | 16.82 | 23.48 | 29.37 | 297.45 | 0.5310 | -736.1 | -510.0 | |
| 5.45 | 11.45 | 3.16 | 6.64 | 15.82 | 23.14 | 29.02 | 295.92 | 0.5210 | 799.1 | 448.3 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 16.64 | 23.13 | 29.01 | 297.38 | 0.5253 | -867.0 | -730.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 21.68 | 23.74 | 29.63 | 305.30 | 0.5650 | -744.0 | -615.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
