SDO HMI 2011-07-03 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.06 | 127.55 | 29.24 | 76.06 | 15.95 | 25.38 | 31.81 | 294.46 | 0.5590 | -412.8 | -235.6 | |
|
previous
or next observation for the same group /

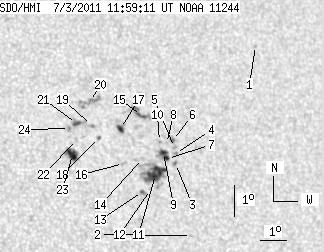

back to the solar disc SDO HMI 2011-07-03 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.59 | 19.06 | 30.84 | 37.27 | 296.50 | 0.6418 | -598.0 | -507.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 13.20 | 27.12 | 33.56 | 288.90 | 0.5710 | 640.0 | 444.2 | |
| 1.00 | 1.45 | 0.60 | 0.88 | 15.45 | 26.90 | 33.33 | 292.79 | 0.5767 | -684.3 | -652.8 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 15.76 | 26.96 | 33.39 | 293.28 | 0.5787 | -794.0 | -584.6 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 15.95 | 26.96 | 33.39 | 293.59 | 0.5795 | -813.0 | -621.0 | |
| 2.09 | 2.82 | 1.27 | 1.71 | 16.17 | 26.92 | 33.35 | 293.97 | 0.5801 | -716.0 | -540.0 | |
| 1.91 | 10.36 | 1.15 | 6.25 | 15.62 | 26.63 | 33.06 | 293.20 | 0.5738 | -772.0 | -638.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 16.09 | 26.68 | 33.11 | 293.96 | 0.5765 | -404.0 | -413.3 | |
| 3.45 | -7.00 | 2.08 | -7.00 | 15.81 | 26.51 | 32.94 | 293.58 | 0.5731 | -862.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.16 | 26.42 | 32.86 | 294.20 | 0.5735 | -720.0 | -644.1 | |
| 20.53 | 42.15 | 12.30 | 25.23 | 15.13 | 26.09 | 32.52 | 292.66 | 0.5645 | -933.6 | -552.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 14.67 | 25.82 | 32.26 | 292.01 | 0.5590 | -609.0 | -409.6 | |
| 0.55 | 2.63 | 0.32 | 1.57 | 14.62 | 25.52 | 31.95 | 292.07 | 0.5547 | -913.2 | -743.7 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 15.64 | 25.69 | 32.12 | 293.74 | 0.5615 | -242.0 | -219.7 | |
| 3.54 | 10.45 | 2.13 | 6.29 | 16.99 | 25.90 | 32.34 | 295.87 | 0.5707 | -828.8 | -714.9 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 15.51 | 24.96 | 31.39 | 293.91 | 0.5512 | 714.0 | 465.8 | |
| 3.82 | 5.90 | 2.27 | 3.52 | 16.60 | 25.04 | 31.47 | 295.73 | 0.5575 | 562.6 | 72.6 | |
| 1.18 | 1.54 | 0.70 | 0.91 | 16.34 | 24.21 | 30.65 | 295.79 | 0.5454 | 413.8 | 382.8 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 16.73 | 23.99 | 30.42 | 296.59 | 0.5443 | -865.0 | -689.3 | |
| 0.00 | 12.90 | 0.00 | 7.63 | 17.48 | 24.05 | 30.48 | 297.84 | 0.5493 | 839.0 | 709.6 | |
| 3.36 | 7.09 | 1.97 | 4.16 | 16.80 | 23.45 | 29.88 | 297.08 | 0.5377 | -705.1 | -405.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 16.30 | 23.36 | 29.79 | 296.26 | 0.5338 | 494.0 | 395.1 | |
| 7.63 | 12.17 | 4.45 | 7.09 | 15.84 | 23.14 | 29.57 | 295.58 | 0.5284 | 816.3 | 351.3 | |
| 0.00 | 2.36 | 0.00 | 1.38 | 16.65 | 23.16 | 29.60 | 297.01 | 0.5331 | -846.0 | -619.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
