SDO HMI 2011-07-03 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.60 | 228.94 | 20.69 | 116.87 | 16.52 | 353.34 | 1.98 | 351.98 | 0.2403 | -204.9 | -174.0 | |
|
previous
or next observation for the same group /

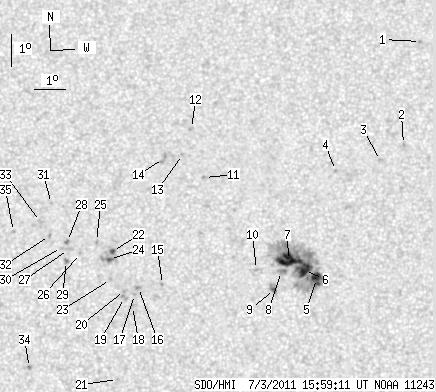

back to the solar disc SDO HMI 2011-07-03 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.82 | 23.43 | 359.13 | 7.77 | 340.37 | 0.3709 | 938.0 | 746.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.12 | 358.39 | 7.03 | 338.57 | 0.3162 | -769.0 | -682.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 19.62 | 357.62 | 6.26 | 340.14 | 0.3039 | -861.0 | -762.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 19.31 | 356.15 | 4.79 | 344.23 | 0.2914 | -714.0 | -603.6 | |
| 8.81 | 149.11 | 4.49 | 76.04 | 15.91 | 355.45 | 4.10 | 342.78 | 0.2332 | -1091.1 | -450.1 | |
| 9.81 | -5.00 | 5.00 | -5.00 | 16.16 | 355.08 | 3.72 | 344.58 | 0.2355 | -1319.6 | 999999 | |
| 17.71 | -5.00 | 9.03 | -5.00 | 16.48 | 354.58 | 3.22 | 346.90 | 0.2386 | -1265.1 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.13 | 16.13 | 354.35 | 2.99 | 347.47 | 0.2320 | -830.0 | -816.6 | |
| 1.00 | 6.08 | 0.51 | 3.09 | 15.57 | 354.12 | 2.76 | 347.87 | 0.2218 | -1106.9 | -801.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 16.20 | 353.55 | 2.20 | 350.77 | 0.2306 | -334.0 | -279.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 19.10 | 351.91 | 0.56 | 358.09 | 0.2769 | -873.0 | -675.2 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 20.66 | 351.49 | 0.14 | 359.57 | 0.3029 | -782.0 | -638.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.83 | 351.20 | -0.15 | 0.50 | 0.2890 | -620.0 | -427.3 | |
| 0.00 | 4.81 | 0.00 | 2.49 | 19.70 | 350.59 | -0.77 | 2.53 | 0.2871 | -518.0 | -656.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.73 | 350.57 | -0.78 | 3.45 | 0.2200 | 863.0 | 696.2 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 15.63 | 349.81 | -1.54 | 6.81 | 0.2195 | 1041.0 | 805.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.42 | 349.69 | -1.67 | 7.49 | 0.2161 | 1012.0 | 681.0 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 15.04 | 349.63 | -1.73 | 8.01 | 0.2099 | 804.0 | 571.4 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 15.32 | 349.37 | -1.98 | 8.96 | 0.2152 | 809.0 | 796.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.54 | 349.37 | -1.99 | 8.81 | 0.2189 | 866.0 | 679.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.78 | 349.18 | -2.18 | 12.45 | 0.1729 | 771.0 | 545.8 | |
| 1.18 | 15.07 | 0.60 | 7.69 | 16.76 | 348.98 | -2.38 | 9.56 | 0.2405 | 1093.8 | 761.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.88 | 348.92 | -2.43 | 10.45 | 0.2260 | 1008.0 | 749.8 | |
| 2.09 | -22.00 | 1.06 | -22.00 | 16.51 | 348.89 | -2.47 | 10.11 | 0.2366 | 1111.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.07 | 348.46 | -2.89 | 11.30 | 0.2473 | 819.0 | 660.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.69 | 347.96 | -3.40 | 13.58 | 0.2429 | 878.0 | 709.1 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 16.82 | 347.57 | -3.78 | 14.91 | 0.2466 | 809.0 | 669.4 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 17.07 | 347.54 | -3.82 | 14.78 | 0.2508 | 1057.0 | 809.7 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 16.44 | 347.52 | -3.84 | 15.55 | 0.2407 | 1052.0 | 829.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.88 | 347.35 | -4.01 | 15.68 | 0.2486 | 677.0 | 536.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.26 | 347.00 | -4.36 | 15.42 | 0.2726 | 806.0 | 597.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 17.26 | 346.96 | -4.40 | 16.67 | 0.2565 | 1023.0 | 704.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.69 | 346.66 | -4.70 | 17.20 | 0.2651 | 737.0 | 680.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.14 | 346.42 | -4.94 | 25.68 | 0.1944 | 1040.0 | 842.8 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 17.38 | 345.80 | -5.56 | 20.53 | 0.2647 | 761.0 | 569.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
