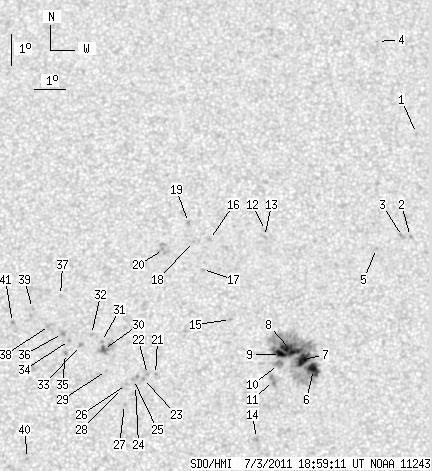

SDO HMI 2011-07-03 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.41 | 233.27 | 18.60 | 119.32 | 16.65 | 353.59 | 3.90 | 344.69 | 0.2484 | -240.2 | -240.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | 23.39 | 359.17 | 9.48 | 336.47 | 0.3804 | 858.0 | 664.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.08 | 358.76 | 9.07 | 333.16 | 0.3292 | -763.0 | -605.2 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 20.09 | 358.50 | 8.80 | 333.82 | 0.3273 | -697.0 | -615.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 26.43 | 358.07 | 8.38 | 341.77 | 0.4189 | 790.0 | 591.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 19.71 | 357.62 | 7.93 | 335.57 | 0.3156 | -899.0 | -791.4 | |
| 9.44 | 150.73 | 4.82 | 77.03 | 15.91 | 355.45 | 5.75 | 336.50 | 0.2429 | -1108.5 | -462.4 | |
| 10.26 | -6.00 | 5.24 | -6.00 | 16.22 | 355.10 | 5.41 | 338.25 | 0.2455 | -1268.8 | 999999 | |
| 11.17 | -6.00 | 5.71 | -6.00 | 16.54 | 354.73 | 5.04 | 340.08 | 0.2483 | -1267.4 | 999999 | |
| 4.36 | -6.00 | 2.23 | -6.00 | 16.38 | 354.41 | 4.72 | 341.05 | 0.2440 | -1224.4 | 999999 | |
| 0.00 | 6.36 | 0.00 | 3.24 | 16.07 | 354.34 | 4.64 | 340.87 | 0.2386 | -989.0 | -828.7 | |
| 0.00 | 6.63 | 0.00 | 3.37 | 15.57 | 354.17 | 4.47 | 340.81 | 0.2296 | -1016.0 | -789.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 20.30 | 354.03 | 4.34 | 346.51 | 0.3054 | -730.0 | -533.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 20.11 | 353.99 | 4.30 | 346.47 | 0.3021 | -810.0 | -637.2 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 13.77 | 353.59 | 3.90 | 340.34 | 0.1974 | -853.0 | -592.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.49 | 352.83 | 3.14 | 348.11 | 0.2549 | -937.0 | -682.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 20.02 | 352.20 | 2.51 | 351.95 | 0.2951 | -854.0 | -648.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 19.07 | 351.96 | 2.27 | 352.25 | 0.2787 | -964.0 | -744.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 19.96 | 351.68 | 1.99 | 353.58 | 0.2929 | -668.0 | -567.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 20.57 | 351.52 | 1.83 | 354.30 | 0.3027 | -863.0 | -673.8 | |
| 0.00 | 7.17 | 0.00 | 3.71 | 19.71 | 350.71 | 1.01 | 356.66 | 0.2873 | -887.0 | -698.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.77 | 350.43 | 0.74 | 356.76 | 0.2204 | 861.0 | 697.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.77 | 350.18 | 0.49 | 357.87 | 0.2202 | 881.0 | 734.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.64 | 350.05 | 0.36 | 358.41 | 0.2180 | 889.0 | 751.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.43 | 349.80 | 0.11 | 359.52 | 0.2142 | 912.0 | 697.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.61 | 349.73 | 0.04 | 359.81 | 0.2174 | 1105.0 | 793.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 15.46 | 349.51 | -0.18 | 0.81 | 0.2147 | 894.0 | 655.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.83 | 349.45 | -0.24 | 1.15 | 0.2041 | 781.0 | 673.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.33 | 349.39 | -0.31 | 1.39 | 0.2126 | 950.0 | 736.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.89 | 348.88 | -0.81 | 3.53 | 0.2226 | 981.0 | 784.7 | |
| 1.18 | 12.44 | 0.60 | 6.34 | 16.55 | 348.78 | -0.91 | 3.75 | 0.2339 | 1179.1 | 819.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.80 | 348.72 | -0.98 | 3.94 | 0.2382 | 841.0 | 705.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 17.02 | 348.40 | -1.30 | 5.14 | 0.2424 | 960.0 | 610.0 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 16.68 | 348.05 | -1.64 | 6.68 | 0.2371 | 992.0 | 794.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.83 | 347.70 | -1.99 | 8.00 | 0.2405 | 1038.0 | 834.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.42 | 347.57 | -2.12 | 8.75 | 0.2340 | 1059.0 | 815.1 | |
| 0.00 | 3.18 | 0.00 | 1.62 | 17.05 | 347.47 | -2.22 | 8.74 | 0.2448 | 1046.0 | 820.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 18.25 | 347.39 | -2.30 | 8.30 | 0.2650 | 818.0 | 590.8 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 17.30 | 347.05 | -2.64 | 10.17 | 0.2501 | 793.0 | 633.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.83 | 346.50 | -3.19 | 11.78 | 0.2608 | 681.0 | 496.4 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 13.15 | 346.42 | -3.28 | 17.70 | 0.1839 | 1035.0 | 762.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.39 | 345.87 | -3.82 | 14.46 | 0.2559 | 899.0 | 718.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
