SDO HMI 2011-07-03 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.62 | 207.57 | 49.80 | 130.07 | 16.15 | 25.76 | 36.07 | 292.64 | 0.6149 | -139.8 | -219.1 | |
|
previous
or next observation for the same group /

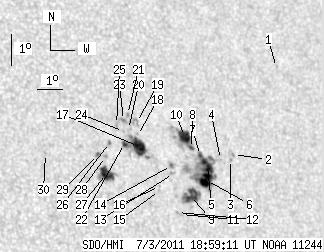

back to the solar disc SDO HMI 2011-07-03 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.68 | 18.94 | 30.76 | 41.07 | 294.66 | 0.6861 | -374.0 | -394.3 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 16.27 | 28.25 | 38.56 | 291.77 | 0.6466 | -532.0 | -432.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 16.12 | 28.10 | 38.41 | 291.60 | 0.6441 | -519.0 | -471.3 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 16.13 | 27.69 | 38.00 | 291.78 | 0.6392 | -567.0 | -508.7 | |
| 7.17 | 66.56 | 4.57 | 42.27 | 15.96 | 27.13 | 37.44 | 291.74 | 0.6315 | -916.5 | -616.4 | |
| 11.99 | -5.00 | 7.61 | -5.00 | 15.50 | 26.99 | 37.30 | 291.08 | 0.6281 | -1067.7 | 999999 | |
| 1.63 | -5.00 | 1.04 | -5.00 | 16.28 | 26.92 | 37.23 | 292.32 | 0.6301 | -779.2 | 999999 | |
| 1.45 | 31.78 | 0.92 | 20.11 | 16.51 | 26.62 | 36.93 | 292.80 | 0.6271 | -709.7 | -426.9 | |
| 14.16 | 20.79 | 8.90 | 13.07 | 15.05 | 26.27 | 36.58 | 290.67 | 0.6173 | -906.8 | -703.3 | |
| 11.17 | -8.00 | 7.08 | -8.00 | 16.90 | 26.42 | 36.73 | 293.47 | 0.6262 | -798.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 14.47 | 25.80 | 36.11 | 289.94 | 0.6092 | -767.0 | -669.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 14.54 | 25.66 | 35.97 | 290.10 | 0.6076 | -803.0 | -668.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 15.75 | 25.74 | 36.05 | 292.00 | 0.6131 | 424.0 | 349.8 | |
| 0.45 | 3.18 | 0.28 | 1.99 | 16.01 | 25.72 | 36.02 | 292.41 | 0.6137 | 613.8 | 282.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 15.24 | 25.09 | 35.40 | 291.47 | 0.6028 | 526.0 | 368.3 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 15.37 | 25.12 | 35.43 | 291.65 | 0.6036 | 363.0 | 394.8 | |
| 16.16 | 36.23 | 10.00 | 22.40 | 16.64 | 24.56 | 34.87 | 293.94 | 0.6015 | 880.0 | 263.1 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 16.98 | 24.59 | 34.90 | 294.47 | 0.6034 | 330.0 | 421.3 | |
| 0.00 | 4.27 | 0.00 | 2.65 | 17.39 | 24.64 | 34.95 | 295.09 | 0.6059 | 311.0 | 435.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 17.18 | 24.29 | 34.59 | 294.94 | 0.6004 | 794.0 | 607.0 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 17.65 | 24.35 | 34.66 | 295.65 | 0.6033 | 573.0 | 495.0 | |
| 2.27 | -17.00 | 1.40 | -17.00 | 16.75 | 24.04 | 34.35 | 294.37 | 0.5953 | -564.4 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.58 | 17.47 | 24.15 | 34.46 | 295.46 | 0.6000 | 924.0 | 732.7 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 17.12 | 24.08 | 34.39 | 294.95 | 0.5975 | 629.0 | 520.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 17.35 | 23.86 | 34.17 | 295.43 | 0.5957 | 614.0 | 560.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 16.80 | 23.47 | 33.78 | 294.74 | 0.5883 | -760.0 | -691.7 | |
| 11.99 | 18.61 | 7.28 | 11.30 | 15.83 | 23.17 | 33.48 | 293.32 | 0.5801 | 838.0 | 218.1 | |
| 0.00 | 1.91 | 0.00 | 1.16 | 16.36 | 23.23 | 33.54 | 294.16 | 0.5832 | 689.0 | 514.8 | |
| 1.18 | 1.91 | 0.72 | 1.16 | 16.43 | 22.98 | 33.29 | 294.41 | 0.5803 | 587.0 | 608.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.52 | 21.00 | 31.31 | 295.67 | 0.5548 | 571.0 | 519.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
