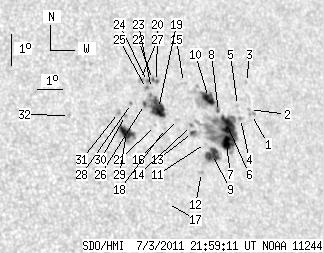

SDO HMI 2011-07-03 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.73 | 222.94 | 48.99 | 142.97 | 16.02 | 26.00 | 37.98 | 291.63 | 0.6383 | -84.3 | -272.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.26 | 16.23 | 28.23 | 40.21 | 291.09 | 0.6666 | -589.0 | -496.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 16.39 | 28.19 | 40.16 | 291.34 | 0.6666 | -540.0 | -413.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 17.24 | 28.28 | 40.25 | 292.54 | 0.6705 | -629.0 | -440.7 | |
| 0.00 | 2.09 | 0.00 | 1.37 | 16.12 | 27.75 | 39.72 | 291.10 | 0.6603 | -653.0 | -496.7 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 16.53 | 27.72 | 39.70 | 291.71 | 0.6614 | -502.0 | -437.2 | |
| 9.63 | 87.54 | 6.28 | 56.82 | 15.92 | 27.16 | 39.14 | 291.02 | 0.6525 | -893.1 | -579.4 | |
| 8.35 | -6.00 | 5.42 | -6.00 | 15.37 | 27.00 | 38.97 | 290.24 | 0.6486 | -1101.6 | 999999 | |
| 0.82 | 32.51 | 0.53 | 21.06 | 16.37 | 26.90 | 38.88 | 291.78 | 0.6508 | -645.6 | -179.4 | |
| 12.53 | 16.80 | 8.06 | 10.80 | 15.04 | 26.36 | 38.33 | 289.98 | 0.6396 | -924.2 | -736.4 | |
| 9.90 | -8.00 | 6.43 | -8.00 | 16.82 | 26.60 | 38.58 | 292.57 | 0.6486 | -674.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.39 | 26.15 | 38.13 | 290.59 | 0.6381 | -793.0 | -576.1 | |
| 0.00 | 2.18 | 0.00 | 1.39 | 14.50 | 25.80 | 37.78 | 289.34 | 0.6308 | -718.0 | -655.5 | |
| 2.18 | 5.45 | 1.39 | 3.48 | 15.75 | 25.71 | 37.68 | 291.31 | 0.6337 | 417.7 | -277.0 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 15.97 | 25.72 | 37.69 | 291.64 | 0.6346 | 661.0 | 554.9 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 17.33 | 25.71 | 37.68 | 293.69 | 0.6395 | -224.0 | -208.2 | |
| 0.00 | 1.73 | 0.00 | 1.10 | 16.18 | 25.20 | 37.17 | 292.16 | 0.6289 | 582.0 | 339.8 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 13.58 | 24.29 | 36.26 | 288.43 | 0.6083 | -707.0 | -577.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.91 | 24.67 | 36.64 | 291.97 | 0.6211 | 655.0 | 405.2 | |
| 18.16 | 30.33 | 11.46 | 19.12 | 16.54 | 24.53 | 36.50 | 293.02 | 0.6217 | 826.4 | 339.5 | |
| 1.18 | 2.72 | 0.75 | 1.73 | 17.39 | 24.64 | 36.61 | 294.27 | 0.6265 | 462.8 | 530.8 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.02 | 24.29 | 36.27 | 292.30 | 0.6168 | 621.0 | 547.4 | |
| 0.45 | -20.00 | 0.29 | -20.00 | 17.46 | 24.49 | 36.47 | 294.44 | 0.6250 | 607.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 17.18 | 24.39 | 36.36 | 294.06 | 0.6226 | 583.0 | 557.6 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 17.40 | 24.28 | 36.26 | 294.45 | 0.6222 | 889.0 | 829.3 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 17.18 | 24.19 | 36.17 | 294.16 | 0.6201 | 793.0 | 725.2 | |
| 1.45 | -19.00 | 0.91 | -19.00 | 16.69 | 24.00 | 35.98 | 293.47 | 0.6157 | -551.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.60 | 17.47 | 24.02 | 36.00 | 294.68 | 0.6192 | 720.0 | 679.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 16.73 | 23.50 | 35.48 | 293.78 | 0.6096 | -777.0 | -636.4 | |
| 12.08 | 18.80 | 7.47 | 11.63 | 15.83 | 23.12 | 35.10 | 292.53 | 0.6010 | 742.8 | 341.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 16.37 | 23.19 | 35.16 | 293.34 | 0.6041 | 723.0 | 608.6 | |
| 0.00 | 2.45 | 0.00 | 1.52 | 16.47 | 22.94 | 34.91 | 293.62 | 0.6013 | 721.0 | 473.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 16.43 | 21.05 | 33.02 | 294.52 | 0.5767 | 678.0 | 594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
