SDO HMI 2011-07-03 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.87 | 237.58 | 20.46 | 121.90 | 16.59 | 353.88 | 6.40 | 335.65 | 0.2609 | -587.0 | -247.5 | |
|
previous
or next observation for the same group /

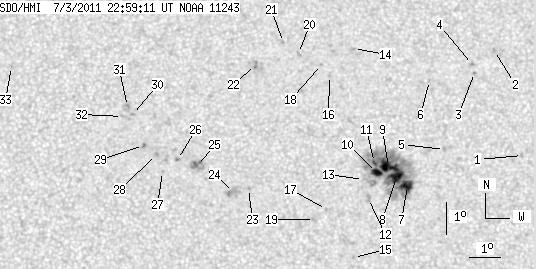

back to the solar disc SDO HMI 2011-07-03 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.86 | 359.19 | 11.71 | 320.81 | 0.3089 | -748.0 | -598.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.19 | 358.49 | 11.02 | 328.62 | 0.3461 | -855.0 | -690.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.50 | 357.79 | 10.31 | 329.14 | 0.3305 | -858.0 | -704.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 19.75 | 357.74 | 10.26 | 329.68 | 0.3336 | -936.0 | -751.5 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 17.08 | 356.67 | 9.20 | 327.68 | 0.2871 | -886.0 | -707.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.26 | 356.30 | 8.83 | 332.50 | 0.3150 | -799.0 | -541.8 | |
| 8.90 | 172.27 | 4.56 | 88.41 | 15.96 | 355.43 | 7.96 | 329.09 | 0.2603 | -1111.5 | -440.1 | |
| 9.99 | -7.00 | 5.13 | -7.00 | 16.24 | 355.09 | 7.62 | 330.74 | 0.2616 | -1305.4 | 999999 | |
| 13.44 | -7.00 | 6.90 | -7.00 | 16.56 | 354.85 | 7.37 | 332.11 | 0.2642 | -1187.9 | 999999 | |
| 5.81 | -7.00 | 2.98 | -7.00 | 16.37 | 354.45 | 6.98 | 333.04 | 0.2584 | -1175.4 | 999999 | |
| 1.73 | -7.00 | 0.89 | -7.00 | 16.69 | 354.40 | 6.93 | 333.77 | 0.2627 | -746.3 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.27 | 15.56 | 354.17 | 6.70 | 332.45 | 0.2441 | -965.0 | -768.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.16 | 354.03 | 6.56 | 334.06 | 0.2520 | -678.0 | -509.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 20.29 | 353.86 | 6.39 | 340.52 | 0.3145 | -767.0 | -564.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.73 | 353.64 | 6.17 | 330.44 | 0.2126 | -811.0 | -643.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.44 | 353.05 | 5.58 | 341.93 | 0.2968 | -888.0 | -644.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.23 | 352.83 | 5.36 | 336.75 | 0.2292 | -906.0 | -687.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 19.79 | 352.80 | 5.33 | 343.05 | 0.3011 | -698.0 | -598.1 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 14.92 | 352.44 | 4.97 | 337.73 | 0.2218 | -775.0 | -585.3 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 20.14 | 352.06 | 4.59 | 345.59 | 0.3034 | -712.0 | -579.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 20.50 | 351.59 | 4.11 | 347.31 | 0.3073 | -814.0 | -698.2 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 19.80 | 350.66 | 3.19 | 349.66 | 0.2927 | -729.0 | -708.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.89 | 350.37 | 2.90 | 347.59 | 0.2271 | 810.0 | 575.3 | |
| 0.00 | 10.81 | 0.00 | 5.49 | 15.77 | 349.89 | 2.42 | 349.48 | 0.2234 | 673.0 | 698.6 | |
| 0.00 | 11.99 | 0.00 | 6.11 | 16.61 | 348.75 | 1.28 | 354.74 | 0.2350 | 1141.0 | 871.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.80 | 348.12 | 0.65 | 357.38 | 0.2375 | 1043.0 | 851.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.43 | 347.64 | 0.17 | 359.29 | 0.2309 | 947.0 | 773.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.96 | 347.45 | -0.02 | 0.08 | 0.2399 | 932.0 | 844.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 17.24 | 347.04 | -0.44 | 1.71 | 0.2448 | 989.0 | 864.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 18.22 | 346.68 | -0.79 | 2.88 | 0.2616 | 816.0 | 666.3 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 18.47 | 346.52 | -0.95 | 3.41 | 0.2660 | 652.0 | 660.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.15 | 346.36 | -1.11 | 4.07 | 0.2609 | 674.0 | 562.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 19.73 | 342.75 | -4.72 | 15.17 | 0.2973 | 831.0 | 646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
