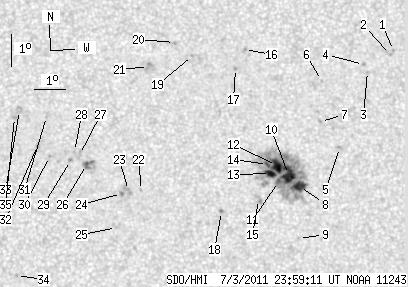

SDO HMI 2011-07-03 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.96 | 235.50 | 22.07 | 120.99 | 16.62 | 353.88 | 6.96 | 333.93 | 0.2653 | -518.8 | -269.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-03 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.53 | 20.22 | 358.74 | 11.82 | 326.89 | 0.3534 | -764.0 | -631.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.10 | 358.63 | 11.71 | 326.91 | 0.3507 | -818.0 | -640.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 19.56 | 357.83 | 10.91 | 327.82 | 0.3364 | -807.0 | -639.9 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 19.79 | 357.72 | 10.80 | 328.47 | 0.3385 | -862.0 | -685.6 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 17.17 | 356.77 | 9.85 | 326.08 | 0.2942 | -744.0 | -603.4 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 19.29 | 356.30 | 9.39 | 331.09 | 0.3198 | -746.0 | -587.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.00 | 356.20 | 9.28 | 329.16 | 0.3005 | -847.0 | -672.7 | |
| 9.35 | 171.92 | 4.81 | 88.34 | 15.96 | 355.42 | 8.51 | 327.40 | 0.2651 | -1076.9 | -447.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.34 | 355.33 | 8.41 | 323.96 | 0.2419 | -793.0 | -603.2 | |
| 14.71 | -8.00 | 7.56 | -8.00 | 16.34 | 355.09 | 8.17 | 329.20 | 0.2675 | -1301.8 | 999999 | |
| 1.82 | -8.00 | 0.93 | -8.00 | 16.12 | 354.76 | 7.84 | 329.78 | 0.2615 | -904.1 | 999999 | |
| 8.72 | -8.00 | 4.48 | -8.00 | 16.62 | 354.71 | 7.80 | 330.90 | 0.2684 | -1154.1 | 999999 | |
| 5.09 | -8.00 | 2.61 | -8.00 | 16.37 | 354.51 | 7.59 | 331.06 | 0.2631 | -1175.4 | 999999 | |
| 2.18 | -8.00 | 1.12 | -8.00 | 16.66 | 354.43 | 7.51 | 331.86 | 0.2666 | -820.0 | 999999 | |
| 0.00 | 5.00 | 0.00 | 2.55 | 15.56 | 354.10 | 7.18 | 330.80 | 0.2479 | -680.0 | -755.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 20.30 | 353.84 | 6.92 | 339.06 | 0.3175 | -799.0 | -557.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 19.69 | 353.52 | 6.60 | 339.22 | 0.3063 | -908.0 | -712.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.20 | 352.91 | 5.99 | 334.27 | 0.2331 | -988.0 | -800.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 20.11 | 352.13 | 5.21 | 343.71 | 0.3056 | -821.0 | -688.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.53 | 351.56 | 4.64 | 345.78 | 0.3097 | -822.0 | -642.8 | |
| 0.00 | 4.81 | 0.00 | 2.49 | 19.77 | 350.69 | 3.77 | 347.79 | 0.2941 | -732.0 | -678.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.86 | 350.39 | 3.47 | 345.20 | 0.2288 | 710.0 | 543.2 | |
| 0.00 | 4.18 | 0.00 | 2.12 | 15.86 | 349.97 | 3.06 | 346.89 | 0.2271 | 812.0 | 749.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 15.77 | 349.75 | 2.83 | 347.73 | 0.2247 | 1132.0 | 942.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.71 | 349.58 | 2.66 | 347.38 | 0.2064 | 262.0 | 254.3 | |
| 1.09 | 9.63 | 0.56 | 4.91 | 16.68 | 348.65 | 1.73 | 352.95 | 0.2369 | 1167.7 | 905.4 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 17.00 | 348.43 | 1.51 | 353.99 | 0.2418 | 719.0 | 572.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.09 | 348.27 | 1.35 | 354.65 | 0.2431 | 797.0 | 634.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.81 | 348.14 | 1.22 | 355.06 | 0.2381 | 1041.0 | 808.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.93 | 347.47 | 0.55 | 357.77 | 0.2395 | 972.0 | 779.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 18.19 | 347.38 | 0.46 | 358.31 | 0.2608 | 799.0 | 625.0 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 17.28 | 347.09 | 0.17 | 359.32 | 0.2453 | 984.0 | 840.2 | |
| 0.00 | 4.27 | 0.00 | 2.19 | 18.38 | 346.51 | -0.40 | 1.46 | 0.2640 | 653.0 | 557.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.23 | 346.43 | -0.49 | 2.71 | 0.1760 | 827.0 | 651.2 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 18.16 | 346.36 | -0.56 | 2.07 | 0.2604 | 813.0 | 599.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
