SDO HMI 2011-07-04 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.34 | 228.72 | 18.19 | 117.85 | 16.59 | 354.17 | 8.36 | 329.45 | 0.2747 | -505.4 | -364.1 | |
|
previous
or next observation for the same group /

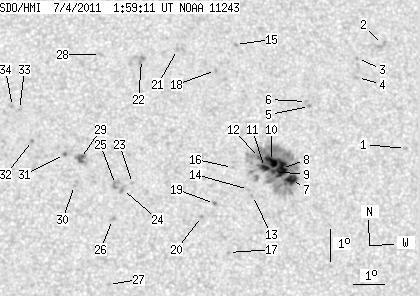

back to the solar disc SDO HMI 2011-07-04 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.93 | 359.17 | 13.35 | 317.31 | 0.3272 | -829.0 | -664.3 | |
| 0.00 | 3.72 | 0.00 | 1.98 | 20.23 | 358.67 | 12.85 | 324.71 | 0.3627 | -655.0 | -739.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.79 | 357.80 | 11.98 | 325.79 | 0.3490 | -771.0 | -604.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.19 | 357.76 | 11.94 | 324.83 | 0.3406 | -813.0 | -659.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.29 | 356.12 | 10.30 | 327.03 | 0.3134 | -920.0 | -769.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 18.45 | 356.03 | 10.22 | 327.54 | 0.3148 | -781.0 | -690.2 | |
| 7.63 | 172.31 | 3.93 | 88.79 | 16.00 | 355.41 | 9.60 | 324.29 | 0.2758 | -1091.2 | -487.9 | |
| 10.36 | -7.00 | 5.34 | -7.00 | 16.35 | 355.11 | 9.29 | 325.90 | 0.2775 | -1340.8 | 999999 | |
| 1.36 | -7.00 | 0.70 | -7.00 | 16.26 | 354.85 | 9.03 | 326.45 | 0.2738 | -1267.2 | 999999 | |
| 7.18 | -7.00 | 3.70 | -7.00 | 16.57 | 354.80 | 8.98 | 327.24 | 0.2777 | -1234.8 | 999999 | |
| 3.63 | -7.00 | 1.87 | -7.00 | 16.38 | 354.56 | 8.75 | 327.54 | 0.2730 | -1231.9 | 999999 | |
| 1.18 | -7.00 | 0.61 | -7.00 | 16.70 | 354.42 | 8.60 | 328.60 | 0.2761 | -723.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.51 | 354.14 | 8.32 | 326.95 | 0.2570 | -952.0 | -790.0 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 15.70 | 354.02 | 8.20 | 327.74 | 0.2585 | -868.0 | -675.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.28 | 353.81 | 8.00 | 336.12 | 0.3238 | -747.0 | -619.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.39 | 353.54 | 7.72 | 330.67 | 0.2642 | -744.0 | -555.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.75 | 353.31 | 7.50 | 325.46 | 0.2245 | -914.0 | -752.2 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 19.45 | 353.12 | 7.30 | 336.90 | 0.3068 | -893.0 | -688.0 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 15.27 | 352.92 | 7.10 | 330.42 | 0.2428 | -983.0 | -752.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.87 | 352.49 | 6.68 | 331.06 | 0.2333 | -938.0 | -689.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.13 | 351.91 | 6.09 | 341.17 | 0.3100 | -848.0 | -669.4 | |
| 0.00 | 4.36 | 0.00 | 2.26 | 19.82 | 350.72 | 4.91 | 344.32 | 0.2992 | -788.0 | -726.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.91 | 350.33 | 4.51 | 341.08 | 0.2345 | 744.0 | 543.9 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 15.72 | 350.01 | 4.19 | 342.08 | 0.2297 | 946.0 | 741.7 | |
| 0.00 | 5.00 | 0.00 | 2.54 | 15.88 | 349.79 | 3.97 | 343.17 | 0.2312 | 757.0 | 838.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.79 | 349.67 | 3.86 | 342.12 | 0.2128 | 815.0 | 706.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.78 | 349.52 | 3.70 | 339.37 | 0.1794 | 913.0 | 687.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 19.98 | 349.40 | 3.58 | 348.54 | 0.2966 | -774.0 | -602.6 | |
| 4.00 | 10.45 | 2.04 | 5.33 | 16.70 | 348.69 | 2.87 | 348.41 | 0.2401 | 1050.0 | 713.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 15.85 | 348.49 | 2.67 | 348.47 | 0.2253 | 862.0 | 680.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.82 | 348.18 | 2.37 | 350.50 | 0.2406 | 1042.0 | 938.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.27 | 347.17 | 1.35 | 354.72 | 0.2458 | 1037.0 | 913.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 18.24 | 346.76 | 0.94 | 356.57 | 0.2618 | 930.0 | 712.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 18.34 | 346.53 | 0.72 | 357.40 | 0.2632 | 842.0 | 710.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
