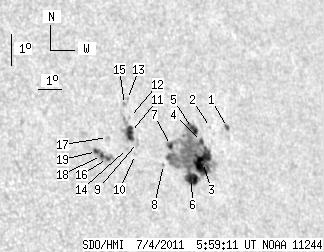

SDO HMI 2011-07-04 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.51 | 203.27 | 40.14 | 139.43 | 15.69 | 26.34 | 42.72 | 289.46 | 0.6949 | -270.2 | -320.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-04 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 2.91 | 1.43 | 2.08 | 16.49 | 28.53 | 44.91 | 289.94 | 0.7225 | -429.9 | -323.7 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 16.52 | 27.78 | 44.16 | 290.19 | 0.7139 | -551.0 | -472.3 | |
| 20.99 | 159.28 | 14.59 | 110.05 | 15.44 | 27.13 | 43.51 | 288.88 | 0.7036 | -926.8 | -497.6 | |
| 1.09 | -3.00 | 0.76 | -3.00 | 16.10 | 27.26 | 43.64 | 289.76 | 0.7069 | -673.0 | 999999 | |
| 6.09 | -3.00 | 4.24 | -3.00 | 16.52 | 26.99 | 43.36 | 290.42 | 0.7047 | -719.4 | 999999 | |
| 11.81 | -3.00 | 8.12 | -3.00 | 14.96 | 26.53 | 42.91 | 288.37 | 0.6953 | -918.7 | 999999 | |
| 2.54 | -3.00 | 1.74 | -3.00 | 16.02 | 25.89 | 42.27 | 290.05 | 0.6906 | 553.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 15.44 | 25.45 | 41.83 | 289.36 | 0.6836 | 488.0 | 357.9 | |
| 0.00 | 2.63 | 0.00 | 1.76 | 16.16 | 24.53 | 40.91 | 290.70 | 0.6746 | 287.0 | 278.6 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 15.79 | 24.35 | 40.73 | 290.22 | 0.6713 | 454.0 | 349.0 | |
| 8.27 | 17.72 | 5.52 | 11.82 | 16.49 | 24.31 | 40.69 | 291.23 | 0.6730 | 782.5 | 490.8 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 16.96 | 24.39 | 40.77 | 291.88 | 0.6755 | 548.0 | 439.4 | |
| 0.00 | 1.82 | 0.00 | 1.22 | 17.52 | 24.46 | 40.84 | 292.67 | 0.6781 | 457.0 | 480.8 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 15.99 | 24.06 | 40.44 | 290.60 | 0.6685 | 733.0 | 541.7 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 17.37 | 24.29 | 40.67 | 292.51 | 0.6756 | 802.0 | 660.5 | |
| 2.09 | 11.27 | 1.37 | 7.37 | 15.71 | 23.17 | 39.55 | 290.49 | 0.6566 | 752.4 | 619.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 16.36 | 23.32 | 39.70 | 291.40 | 0.6606 | 570.0 | 496.7 | |
| 1.54 | -16.00 | 1.01 | -16.00 | 15.81 | 22.94 | 39.32 | 290.72 | 0.6541 | 754.9 | 999999 | |
| 2.09 | -16.00 | 1.36 | -16.00 | 15.94 | 22.77 | 39.15 | 290.98 | 0.6524 | 749.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
