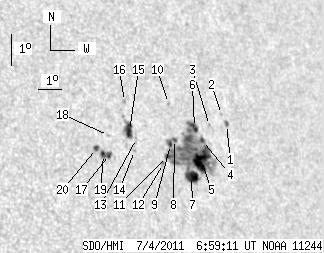

SDO HMI 2011-07-04 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.35 | 190.00 | 39.57 | 131.69 | 15.66 | 26.40 | 43.33 | 289.24 | 0.7020 | -277.9 | -385.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-04 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 2.45 | 1.24 | 1.77 | 16.50 | 28.54 | 45.46 | 289.81 | 0.7287 | -454.5 | -383.4 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 16.82 | 28.41 | 45.33 | 290.28 | 0.7280 | -526.0 | -366.8 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 16.50 | 27.77 | 44.69 | 290.02 | 0.7200 | -493.0 | -392.0 | |
| 1.82 | 153.29 | 1.28 | 106.89 | 16.05 | 27.32 | 44.25 | 289.51 | 0.7137 | -616.5 | -505.5 | |
| 19.08 | -4.00 | 13.37 | -4.00 | 15.43 | 27.11 | 44.03 | 288.72 | 0.7097 | -949.6 | 999999 | |
| 4.54 | -4.00 | 3.19 | -4.00 | 16.47 | 27.09 | 44.01 | 290.16 | 0.7121 | -730.7 | 999999 | |
| 10.36 | -4.00 | 7.18 | -4.00 | 14.95 | 26.54 | 43.47 | 288.19 | 0.7020 | -935.1 | 999999 | |
| 1.73 | -4.00 | 1.19 | -4.00 | 16.12 | 26.11 | 43.04 | 289.96 | 0.6998 | 293.5 | 999999 | |
| 1.64 | -4.00 | 1.13 | -4.00 | 15.97 | 25.90 | 42.82 | 289.82 | 0.6969 | 574.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 17.26 | 26.17 | 43.09 | 291.53 | 0.7036 | -706.0 | -572.3 | |
| 1.64 | -4.00 | 1.12 | -4.00 | 15.61 | 25.67 | 42.60 | 289.36 | 0.6933 | 395.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 15.39 | 25.44 | 42.37 | 289.13 | 0.6900 | 397.0 | 337.5 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 16.21 | 24.50 | 41.43 | 290.59 | 0.6810 | 416.0 | 333.9 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 15.84 | 24.32 | 41.25 | 290.11 | 0.6777 | 452.0 | 340.5 | |
| 7.91 | 15.36 | 5.32 | 10.33 | 16.47 | 24.27 | 41.20 | 291.04 | 0.6790 | 803.0 | 544.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 17.39 | 24.30 | 41.23 | 292.33 | 0.6822 | 748.0 | 635.9 | |
| 2.45 | 7.54 | 1.62 | 4.97 | 15.76 | 23.25 | 40.18 | 290.34 | 0.6645 | 748.1 | 517.8 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 16.35 | 23.36 | 40.28 | 291.17 | 0.6676 | 568.0 | 479.1 | |
| 2.18 | -17.00 | 1.44 | -17.00 | 15.76 | 23.00 | 39.93 | 290.43 | 0.6615 | 680.3 | 999999 | |
| 2.27 | 2.64 | 1.49 | 1.73 | 15.96 | 22.76 | 39.69 | 290.81 | 0.6591 | 746.8 | 498.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
