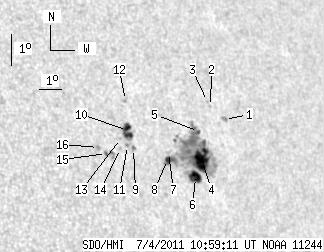

SDO HMI 2011-07-04 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.24 | 175.61 | 33.20 | 126.42 | 15.49 | 26.48 | 45.59 | 288.41 | 0.7278 | -305.8 | -330.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-04 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.91 | 0.00 | 2.18 | 16.64 | 28.61 | 47.73 | 289.41 | 0.7540 | -604.0 | -401.3 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 17.07 | 28.09 | 47.21 | 290.10 | 0.7493 | -541.0 | -492.4 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 17.23 | 28.00 | 47.12 | 290.34 | 0.7487 | -590.0 | -491.2 | |
| 20.90 | 142.00 | 15.23 | 102.94 | 15.44 | 27.16 | 46.28 | 288.16 | 0.7355 | -922.6 | -467.6 | |
| 1.27 | -4.00 | 0.93 | -4.00 | 16.31 | 27.29 | 46.41 | 289.30 | 0.7388 | -643.5 | 999999 | |
| 10.90 | -4.00 | 7.87 | -4.00 | 14.89 | 26.74 | 45.85 | 287.52 | 0.7295 | -864.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 15.71 | 25.75 | 44.86 | 288.88 | 0.7200 | -372.0 | -275.3 | |
| 2.63 | -4.00 | 1.87 | -4.00 | 15.50 | 25.64 | 44.76 | 288.61 | 0.7183 | 437.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.51 | 15.89 | 24.24 | 43.36 | 289.54 | 0.7030 | 531.0 | 406.8 | |
| 9.36 | 12.72 | 6.50 | 8.83 | 16.46 | 24.14 | 43.26 | 290.36 | 0.7033 | 780.1 | 591.9 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 16.00 | 24.01 | 43.13 | 289.75 | 0.7005 | 741.0 | 663.3 | |
| 0.00 | 1.73 | 0.00 | 1.21 | 17.40 | 24.32 | 43.44 | 291.61 | 0.7080 | 611.0 | 418.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 16.23 | 23.77 | 42.89 | 290.14 | 0.6983 | 582.0 | 466.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 15.92 | 23.68 | 42.80 | 289.73 | 0.6965 | 597.0 | 488.5 | |
| 1.18 | 5.81 | 0.80 | 3.97 | 15.78 | 23.05 | 42.16 | 289.73 | 0.6885 | 711.2 | 667.2 | |
| 0.00 | 2.09 | 0.00 | 1.42 | 15.98 | 22.75 | 41.87 | 290.10 | 0.6856 | 825.0 | 636.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
