SDO HMI 2011-07-04 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.50 | 215.42 | 19.49 | 114.72 | 16.76 | 354.47 | 16.90 | 310.57 | 0.3675 | -608.0 | -347.8 | |
|
previous
or next observation for the same group /

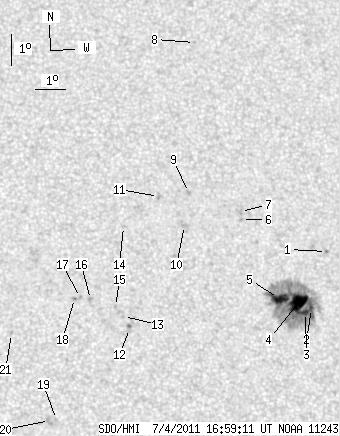

back to the solar disc SDO HMI 2011-07-04 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | 18.25 | 356.43 | 18.86 | 310.50 | 0.4054 | -765.0 | -581.9 | |
| 0.82 | 186.61 | 0.44 | 99.62 | 16.47 | 355.73 | 18.17 | 307.80 | 0.3800 | -805.2 | -438.0 | |
| 3.27 | -2.00 | 1.75 | -2.00 | 16.34 | 355.52 | 17.95 | 307.84 | 0.3761 | -1065.5 | 999999 | |
| 19.61 | -2.00 | 10.48 | -2.00 | 16.66 | 355.32 | 17.75 | 308.83 | 0.3765 | -1364.7 | 999999 | |
| 12.80 | -2.00 | 6.82 | -2.00 | 16.80 | 354.66 | 17.10 | 310.13 | 0.3696 | -1209.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.31 | 353.67 | 16.10 | 316.85 | 0.3844 | -854.0 | -688.0 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 19.56 | 353.66 | 16.09 | 317.34 | 0.3871 | -842.0 | -726.2 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 25.03 | 352.72 | 15.15 | 327.62 | 0.4440 | 719.0 | 617.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 20.19 | 351.98 | 14.41 | 321.50 | 0.3768 | -852.0 | -674.0 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 19.14 | 351.75 | 14.18 | 320.02 | 0.3618 | -769.0 | -601.1 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 20.07 | 350.96 | 13.40 | 323.25 | 0.3653 | -840.0 | -689.5 | |
| 0.00 | 3.18 | 0.00 | 1.65 | 15.93 | 349.70 | 12.14 | 317.58 | 0.3010 | 598.0 | 510.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.30 | 349.53 | 11.96 | 318.84 | 0.3036 | 851.0 | 625.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 19.14 | 349.73 | 12.16 | 324.16 | 0.3413 | -690.0 | -492.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.62 | 349.29 | 11.72 | 320.11 | 0.3049 | 875.0 | 684.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 16.85 | 348.49 | 10.93 | 322.52 | 0.2995 | 964.0 | 810.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.91 | 348.17 | 10.61 | 323.47 | 0.2971 | 1004.0 | 785.7 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 16.88 | 347.98 | 10.41 | 323.91 | 0.2948 | 1105.0 | 889.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.12 | 347.22 | 9.65 | 316.62 | 0.2389 | 756.0 | 580.7 | |
| 0.00 | 4.00 | 0.00 | 2.04 | 13.09 | 347.00 | 9.43 | 317.19 | 0.2359 | 775.0 | 767.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.81 | 345.90 | 8.33 | 327.47 | 0.2604 | 747.0 | 628.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
