SDO HMI 2011-07-04 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.68 | 142.28 | 27.71 | 111.43 | 15.52 | 26.54 | 50.09 | 287.47 | 0.7768 | -203.7 | -318.0 | |
|
previous
or next observation for the same group /

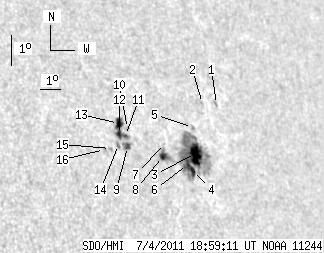

back to the solar disc SDO HMI 2011-07-04 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.58 | 16.89 | 28.96 | 52.50 | 288.72 | 0.8037 | -463.0 | -332.0 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 16.95 | 28.25 | 51.79 | 288.93 | 0.7968 | -545.0 | -498.5 | |
| 16.71 | 97.61 | 13.31 | 77.49 | 15.41 | 27.33 | 50.88 | 287.18 | 0.7850 | -893.4 | -445.1 | |
| 3.00 | -3.00 | 2.37 | -3.00 | 14.89 | 27.06 | 50.60 | 286.56 | 0.7814 | -727.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 16.23 | 27.46 | 51.01 | 288.18 | 0.7877 | -551.0 | -471.6 | |
| 0.82 | -3.00 | 0.64 | -3.00 | 15.09 | 26.82 | 50.37 | 286.86 | 0.7792 | -1029.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 15.79 | 25.92 | 49.46 | 287.92 | 0.7708 | -746.0 | -611.1 | |
| 2.45 | 12.17 | 1.89 | 9.39 | 15.39 | 25.69 | 49.23 | 287.45 | 0.7677 | 255.7 | -371.4 | |
| 3.36 | 5.45 | 2.51 | 4.07 | 15.77 | 24.13 | 47.68 | 288.27 | 0.7516 | 487.8 | 470.3 | |
| 0.00 | 1.45 | 0.00 | 1.09 | 16.32 | 24.31 | 47.85 | 288.96 | 0.7546 | 87.0 | 85.9 | |
| 0.54 | 15.16 | 0.41 | 11.33 | 16.11 | 24.15 | 47.69 | 288.72 | 0.7524 | 406.2 | 426.2 | |
| 2.81 | -11.00 | 2.10 | -11.00 | 16.15 | 23.88 | 47.42 | 288.83 | 0.7495 | 774.9 | 999999 | |
| 5.99 | -11.00 | 4.48 | -11.00 | 16.50 | 23.94 | 47.48 | 289.27 | 0.7510 | 706.4 | 999999 | |
| 0.00 | 2.81 | 0.00 | 2.09 | 15.84 | 23.73 | 47.28 | 288.46 | 0.7473 | 733.0 | 642.0 | |
| 0.00 | 1.63 | 0.00 | 1.20 | 15.74 | 23.32 | 46.87 | 288.41 | 0.7426 | 745.0 | 595.7 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 15.72 | 23.04 | 46.58 | 288.45 | 0.7394 | 463.0 | 491.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
