SDO HMI 2011-07-04 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.42 | 132.65 | 28.13 | 106.27 | 15.52 | 26.53 | 51.18 | 287.26 | 0.7882 | -291.6 | -299.8 | |
|
previous
or next observation for the same group /

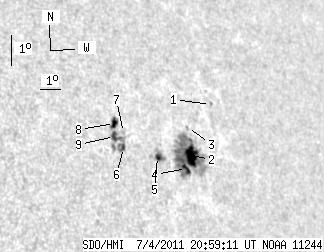

back to the solar disc SDO HMI 2011-07-04 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.39 | 16.91 | 28.98 | 53.64 | 288.54 | 0.8148 | -424.0 | -372.2 | |
| 16.53 | 91.71 | 13.48 | 74.58 | 15.37 | 27.39 | 52.04 | 286.91 | 0.7968 | -864.9 | -438.2 | |
| 0.00 | 1.54 | 0.00 | 1.27 | 16.25 | 27.50 | 52.15 | 287.98 | 0.7993 | -503.0 | -430.4 | |
| 4.27 | -2.00 | 3.45 | -2.00 | 14.98 | 26.99 | 51.65 | 286.49 | 0.7923 | -866.6 | 999999 | |
| 2.27 | 8.99 | 1.79 | 7.09 | 15.41 | 25.68 | 50.33 | 287.26 | 0.7793 | 280.9 | -369.9 | |
| 3.00 | 27.24 | 2.29 | 20.76 | 15.76 | 24.12 | 48.78 | 288.01 | 0.7635 | 360.5 | 416.2 | |
| 0.00 | 1.54 | 0.00 | 1.18 | 16.23 | 24.28 | 48.93 | 288.58 | 0.7660 | 277.0 | 122.8 | |
| 4.81 | -6.00 | 3.67 | -6.00 | 16.52 | 23.94 | 48.60 | 289.04 | 0.7630 | 630.8 | 999999 | |
| 4.54 | -6.00 | 3.45 | -6.00 | 16.12 | 23.81 | 48.46 | 288.55 | 0.7608 | 747.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
