SDO HMI 2011-07-04 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.42 | 134.20 | 27.67 | 108.78 | 15.50 | 26.52 | 51.73 | 287.14 | 0.7937 | -216.1 | -292.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-04 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

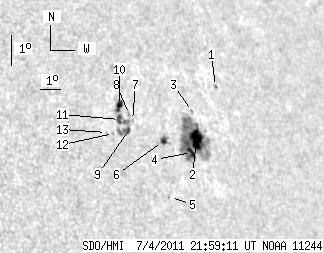

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.41 | 16.95 | 29.05 | 54.26 | 288.48 | 0.8208 | -396.0 | -283.6 | |
| 15.80 | 93.53 | 13.06 | 77.02 | 15.35 | 27.40 | 52.61 | 286.79 | 0.8025 | -814.9 | -446.0 | |
| 0.00 | 1.36 | 0.00 | 1.13 | 16.23 | 27.52 | 52.73 | 287.86 | 0.8049 | -450.0 | -382.7 | |
| 4.36 | -2.00 | 3.57 | -2.00 | 14.96 | 27.00 | 52.21 | 286.37 | 0.7980 | -839.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.43 | 13.62 | 25.50 | 50.71 | 284.91 | 0.7807 | -520.0 | -454.7 | |
| 2.36 | 6.72 | 1.88 | 5.36 | 15.37 | 25.66 | 50.87 | 287.10 | 0.7848 | 269.2 | -398.6 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 16.08 | 24.41 | 49.62 | 288.25 | 0.7730 | 156.0 | 77.0 | |
| 0.00 | 1.45 | 0.00 | 1.13 | 16.27 | 24.33 | 49.54 | 288.51 | 0.7725 | 207.0 | 124.4 | |
| 2.45 | 26.15 | 1.89 | 20.14 | 15.78 | 24.11 | 49.32 | 287.92 | 0.7693 | 332.9 | 423.7 | |
| 5.36 | -9.00 | 4.13 | -9.00 | 16.57 | 23.94 | 49.15 | 288.98 | 0.7689 | 618.2 | 999999 | |
| 4.09 | -9.00 | 3.14 | -9.00 | 16.14 | 23.79 | 49.00 | 288.45 | 0.7665 | 730.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 15.71 | 23.36 | 48.57 | 287.99 | 0.7612 | 763.0 | 660.9 | |
| 0.00 | 0.73 | 0.00 | 0.55 | 15.76 | 23.04 | 48.25 | 288.12 | 0.7578 | 407.0 | 475.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
