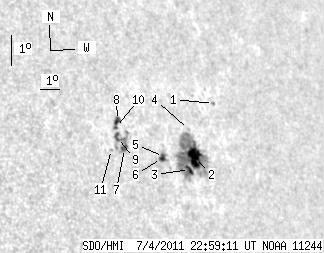

SDO HMI 2011-07-04 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.41 | 129.40 | 29.71 | 106.45 | 15.46 | 26.70 | 52.47 | 286.96 | 0.8010 | -274.1 | -311.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-04 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.27 | 16.96 | 29.11 | 54.87 | 288.38 | 0.8265 | -444.0 | -328.9 | |
| 17.53 | 96.44 | 14.68 | 80.42 | 15.33 | 27.47 | 53.24 | 286.66 | 0.8086 | -763.5 | -428.6 | |
| 4.09 | -2.00 | 3.39 | -2.00 | 14.97 | 27.03 | 52.79 | 286.29 | 0.8038 | -835.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.14 | 16.21 | 27.43 | 53.20 | 287.75 | 0.8095 | -512.0 | -417.8 | |
| 1.27 | 5.27 | 1.03 | 4.26 | 15.43 | 25.84 | 51.60 | 287.05 | 0.7924 | -465.4 | -518.6 | |
| 2.45 | -5.00 | 1.98 | -5.00 | 15.37 | 25.72 | 51.48 | 287.00 | 0.7911 | 219.1 | 999999 | |
| 2.00 | 17.25 | 1.56 | 13.42 | 15.76 | 24.00 | 49.76 | 287.81 | 0.7738 | 508.6 | 371.4 | |
| 3.81 | 6.54 | 2.98 | 5.10 | 16.64 | 23.95 | 49.72 | 288.94 | 0.7750 | 557.7 | 552.5 | |
| 3.72 | -7.00 | 2.89 | -7.00 | 16.12 | 23.77 | 49.53 | 288.31 | 0.7721 | 697.8 | 999999 | |
| 1.54 | -8.00 | 1.20 | -8.00 | 16.43 | 23.78 | 49.54 | 288.71 | 0.7728 | 761.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 15.76 | 23.36 | 49.12 | 287.93 | 0.7671 | 688.0 | 612.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
