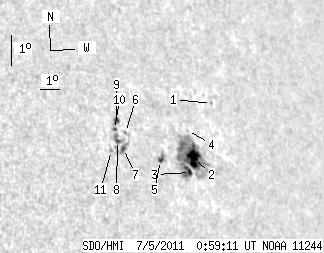

SDO HMI 2011-07-05 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.89 | 118.24 | 21.66 | 99.64 | 15.45 | 26.66 | 53.52 | 286.77 | 0.8114 | -210.2 | -295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.90 | 16.98 | 29.15 | 56.02 | 288.23 | 0.8370 | -305.0 | -269.4 | |
| 13.81 | 86.92 | 11.87 | 74.41 | 15.32 | 27.45 | 54.31 | 286.48 | 0.8191 | -777.0 | -452.5 | |
| 2.09 | -2.00 | 1.78 | -2.00 | 14.90 | 27.12 | 53.99 | 286.01 | 0.8155 | -690.1 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 16.20 | 27.47 | 54.34 | 287.55 | 0.8204 | -405.0 | -367.2 | |
| 2.00 | 5.72 | 1.65 | 4.73 | 15.34 | 25.69 | 52.56 | 286.77 | 0.8019 | 213.0 | -359.6 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 16.28 | 24.23 | 51.10 | 288.20 | 0.7886 | 234.0 | 192.1 | |
| 2.72 | 9.26 | 2.17 | 7.36 | 15.79 | 23.95 | 50.82 | 287.63 | 0.7849 | 481.1 | 381.9 | |
| 1.82 | 8.27 | 1.44 | 6.57 | 16.05 | 23.74 | 50.61 | 288.00 | 0.7832 | 623.0 | 575.9 | |
| 2.91 | 3.72 | 2.32 | 2.97 | 16.68 | 23.92 | 50.78 | 288.75 | 0.7860 | 527.1 | 561.2 | |
| 0.54 | -8.00 | 0.43 | -8.00 | 16.40 | 23.71 | 50.58 | 288.45 | 0.7835 | 742.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.07 | 15.75 | 23.34 | 50.21 | 287.70 | 0.7785 | 747.0 | 601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
