SDO HMI 2011-07-05 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.26 | 108.30 | 25.01 | 96.34 | 15.46 | 26.66 | 55.72 | 286.45 | 0.8323 | -339.3 | -212.4 | |
|
previous
or next observation for the same group /

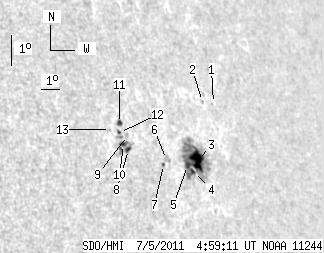

back to the solar disc SDO HMI 2011-07-05 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.61 | 17.02 | 29.29 | 58.35 | 287.93 | 0.8576 | -181.0 | -197.7 | |
| 0.00 | 1.27 | 0.00 | 1.20 | 17.11 | 28.66 | 57.73 | 288.12 | 0.8523 | -435.0 | -342.5 | |
| 15.08 | 77.86 | 13.71 | 70.56 | 15.30 | 27.55 | 56.61 | 286.13 | 0.8405 | -750.1 | -375.5 | |
| 1.64 | -3.00 | 1.47 | -3.00 | 14.97 | 27.18 | 56.25 | 285.79 | 0.8368 | -775.7 | 999999 | |
| 3.09 | -3.00 | 2.76 | -3.00 | 15.17 | 26.92 | 55.99 | 286.06 | 0.8346 | -707.2 | 999999 | |
| 0.00 | 4.54 | 0.00 | 3.96 | 15.41 | 25.84 | 54.90 | 286.49 | 0.8247 | -414.0 | -185.7 | |
| 0.91 | 1.54 | 0.79 | 1.34 | 15.26 | 25.61 | 54.68 | 286.34 | 0.8224 | 281.7 | 164.9 | |
| 2.45 | 12.90 | 2.05 | 10.73 | 15.81 | 23.94 | 53.00 | 287.26 | 0.8069 | 391.1 | 457.7 | |
| 0.00 | 1.73 | 0.00 | 1.45 | 16.25 | 24.05 | 53.12 | 287.78 | 0.8086 | 260.0 | 211.6 | |
| 1.73 | -8.00 | 1.43 | -8.00 | 15.98 | 23.73 | 52.80 | 287.50 | 0.8051 | 687.4 | 999999 | |
| 2.45 | 2.73 | 2.05 | 2.27 | 16.64 | 23.78 | 52.84 | 288.31 | 0.8065 | 481.8 | 531.3 | |
| 0.91 | 4.18 | 0.75 | 3.47 | 16.36 | 23.67 | 52.74 | 287.98 | 0.8050 | 556.8 | 614.0 | |
| 0.00 | 0.91 | 0.00 | 0.75 | 16.47 | 23.24 | 52.31 | 288.20 | 0.8010 | 551.0 | 498.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
