SDO HMI 2011-07-05 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.26 | 106.78 | 25.75 | 97.82 | 15.56 | 26.74 | 56.90 | 286.41 | 0.8431 | -308.0 | -210.2 | |
|
previous
or next observation for the same group /

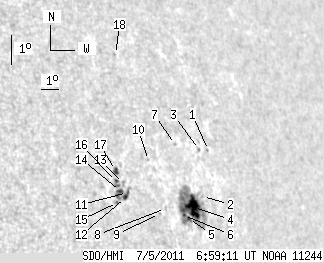

back to the solar disc SDO HMI 2011-07-05 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.81 | 17.03 | 29.32 | 59.48 | 287.80 | 0.8670 | -238.0 | -206.4 | |
| 0.00 | 0.73 | 0.00 | 0.69 | 15.63 | 28.25 | 58.42 | 286.30 | 0.8568 | 198.0 | 176.6 | |
| 0.00 | 1.18 | 0.00 | 1.15 | 17.09 | 28.78 | 58.94 | 287.94 | 0.8626 | -400.0 | -296.0 | |
| 16.99 | 77.05 | 15.92 | 71.93 | 15.32 | 27.57 | 57.73 | 286.02 | 0.8505 | -720.5 | -362.6 | |
| 2.09 | -4.00 | 1.93 | -4.00 | 14.99 | 27.14 | 57.30 | 285.68 | 0.8463 | -831.9 | 999999 | |
| 1.00 | -4.00 | 0.92 | -4.00 | 15.10 | 26.89 | 57.05 | 285.84 | 0.8442 | -750.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.85 | 17.32 | 27.42 | 57.59 | 288.37 | 0.8513 | -526.0 | -476.9 | |
| 0.00 | 0.82 | 0.00 | 0.73 | 15.36 | 25.96 | 56.12 | 286.26 | 0.8360 | -336.0 | -315.8 | |
| 0.00 | 0.91 | 0.00 | 0.81 | 15.22 | 25.56 | 55.72 | 286.15 | 0.8322 | 177.0 | 239.7 | |
| 0.00 | 0.55 | 0.00 | 0.49 | 16.89 | 25.64 | 55.81 | 288.13 | 0.8349 | -508.0 | -456.3 | |
| 0.36 | 12.36 | 0.31 | 10.55 | 15.95 | 24.07 | 54.24 | 287.24 | 0.8190 | 179.2 | 421.3 | |
| 1.91 | -11.00 | 1.63 | -11.00 | 15.80 | 23.91 | 54.07 | 287.08 | 0.8172 | 364.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.48 | 16.24 | 23.97 | 54.13 | 287.60 | 0.8184 | 250.0 | 215.7 | |
| 1.82 | -11.00 | 1.55 | -11.00 | 16.00 | 23.71 | 53.87 | 287.35 | 0.8156 | 655.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 15.67 | 23.42 | 53.58 | 286.99 | 0.8123 | 598.0 | 586.5 | |
| 1.18 | 4.00 | 1.01 | 3.40 | 16.32 | 23.62 | 53.78 | 287.75 | 0.8152 | 559.5 | 614.2 | |
| 2.91 | 3.45 | 2.48 | 2.95 | 16.66 | 23.71 | 53.87 | 288.16 | 0.8165 | 509.9 | 317.5 | |
| 0.00 | 1.09 | 0.00 | 0.98 | 20.29 | 25.43 | 55.59 | 292.19 | 0.8379 | -443.0 | -325.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
