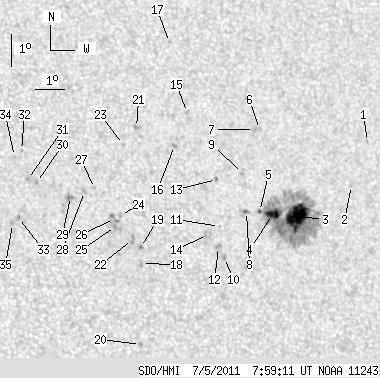

SDO HMI 2011-07-05 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.43 | 278.49 | 26.86 | 156.60 | 16.95 | 354.35 | 25.06 | 300.93 | 0.4738 | -439.3 | -240.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | 19.09 | 358.53 | 29.23 | 301.15 | 0.5414 | -700.0 | -508.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 17.72 | 357.69 | 28.39 | 299.43 | 0.5221 | -738.0 | -482.5 | |
| 37.89 | 214.17 | 21.49 | 121.27 | 16.80 | 355.59 | 26.30 | 299.40 | 0.4889 | -1125.9 | -366.2 | |
| 8.45 | -3.00 | 4.76 | -3.00 | 16.88 | 354.72 | 25.43 | 300.30 | 0.4778 | -1205.5 | 999999 | |
| 1.09 | -3.00 | 0.61 | -3.00 | 16.99 | 354.28 | 24.99 | 300.89 | 0.4726 | -765.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.57 | 354.68 | 25.39 | 305.23 | 0.4966 | -378.0 | -372.5 | |
| 0.00 | 2.54 | 0.00 | 1.45 | 19.57 | 354.50 | 25.21 | 305.41 | 0.4944 | -627.0 | -586.7 | |
| 0.00 | 2.18 | 0.00 | 1.22 | 17.00 | 353.82 | 24.53 | 301.33 | 0.4667 | -873.0 | -747.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 18.19 | 353.86 | 24.56 | 303.55 | 0.4758 | 977.0 | 720.6 | |
| 0.00 | 2.73 | 0.00 | 1.51 | 15.58 | 352.87 | 23.58 | 299.41 | 0.4441 | -899.0 | -730.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 16.55 | 352.82 | 23.53 | 301.41 | 0.4502 | -671.0 | -529.7 | |
| 0.00 | 3.63 | 0.00 | 2.01 | 15.89 | 352.70 | 23.41 | 300.21 | 0.4440 | -777.0 | -724.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 18.03 | 352.92 | 23.62 | 304.17 | 0.4625 | 833.0 | 694.2 | |
| 0.00 | 3.73 | 0.00 | 2.06 | 16.31 | 352.37 | 23.08 | 301.37 | 0.4425 | -384.0 | -663.6 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 20.17 | 352.22 | 22.93 | 308.84 | 0.4713 | -697.0 | -448.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 19.13 | 351.61 | 22.31 | 307.66 | 0.4549 | -916.0 | -788.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 22.42 | 351.95 | 22.66 | 312.96 | 0.4885 | -400.0 | -361.1 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 15.45 | 350.02 | 20.73 | 302.10 | 0.4044 | 688.0 | 596.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.95 | 350.04 | 20.75 | 303.16 | 0.4085 | 822.0 | 738.3 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 12.94 | 349.74 | 20.45 | 296.65 | 0.3827 | 814.0 | 545.0 | |
| 0.00 | 3.00 | 0.00 | 1.66 | 19.73 | 350.37 | 21.08 | 310.23 | 0.4452 | -753.0 | -631.0 | |
| 0.00 | 3.63 | 0.00 | 1.97 | 16.20 | 349.79 | 20.50 | 303.99 | 0.4073 | 537.0 | 588.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 19.20 | 349.85 | 20.55 | 309.91 | 0.4340 | -766.0 | -585.7 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 16.96 | 349.47 | 20.18 | 305.98 | 0.4094 | 700.0 | 508.1 | |
| 0.00 | 4.09 | 0.00 | 2.21 | 16.62 | 349.26 | 19.97 | 305.53 | 0.4038 | 1013.0 | 732.7 | |
| 0.00 | 3.63 | 0.00 | 1.97 | 16.87 | 349.26 | 19.97 | 306.06 | 0.4059 | 811.0 | 745.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.83 | 348.69 | 19.39 | 308.77 | 0.4071 | 612.0 | 545.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 17.74 | 348.34 | 19.04 | 309.07 | 0.4020 | 420.0 | 452.1 | |
| 0.00 | 4.18 | 0.00 | 2.25 | 17.59 | 347.85 | 18.55 | 309.45 | 0.3945 | 838.0 | 797.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 18.05 | 346.75 | 17.46 | 312.03 | 0.3856 | 875.0 | 679.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 18.15 | 346.46 | 17.17 | 312.69 | 0.3831 | 885.0 | 812.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 19.07 | 346.35 | 17.06 | 314.67 | 0.3915 | 603.0 | 506.6 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 16.96 | 346.04 | 16.75 | 310.86 | 0.3660 | 991.0 | 766.9 | |
| 0.00 | 0.55 | 0.00 | 0.29 | 18.88 | 346.10 | 16.80 | 314.72 | 0.3866 | 735.0 | 614.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 16.78 | 345.83 | 16.53 | 310.81 | 0.3615 | 967.0 | 774.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
