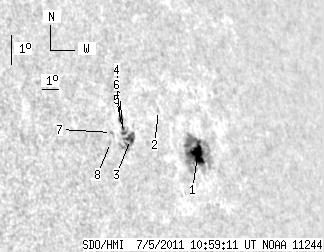

SDO HMI 2011-07-05 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.26 | 102.03 | 21.35 | 98.83 | 15.49 | 26.61 | 58.96 | 286.08 | 0.8610 | -250.3 | -138.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.81 | 74.23 | 13.76 | 73.90 | 15.28 | 27.58 | 59.93 | 285.73 | 0.8693 | -751.3 | -292.7 | |
| 0.00 | 1.00 | 0.00 | 0.95 | 16.75 | 25.86 | 58.21 | 287.62 | 0.8561 | -576.0 | -500.5 | |
| 4.54 | 16.72 | 4.09 | 14.99 | 15.93 | 23.83 | 56.18 | 286.92 | 0.8372 | 422.2 | 436.5 | |
| 0.73 | 4.63 | 0.65 | 4.15 | 16.17 | 23.53 | 55.89 | 287.24 | 0.8347 | 759.1 | 478.8 | |
| 1.09 | -4.00 | 0.98 | -4.00 | 16.29 | 23.53 | 55.88 | 287.40 | 0.8348 | 502.4 | 999999 | |
| 2.09 | 3.00 | 1.87 | 2.69 | 16.61 | 23.55 | 55.91 | 287.77 | 0.8354 | 509.4 | 450.8 | |
| 0.00 | 1.18 | 0.00 | 1.04 | 16.20 | 22.87 | 55.22 | 287.38 | 0.8286 | 629.0 | 590.7 | |
| 0.00 | 1.27 | 0.00 | 1.11 | 15.89 | 22.68 | 55.04 | 287.03 | 0.8265 | 525.0 | 379.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
