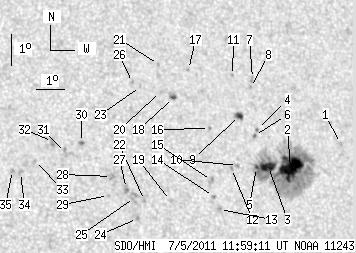

SDO HMI 2011-07-05 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.40 | 280.51 | 29.64 | 160.59 | 17.00 | 354.24 | 27.15 | 299.24 | 0.5015 | -476.5 | -214.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.29 | 17.54 | 357.52 | 30.42 | 297.69 | 0.5474 | 456.0 | 437.5 | |
| 33.70 | 205.67 | 19.49 | 118.74 | 16.84 | 355.56 | 28.46 | 297.81 | 0.5178 | -1092.7 | -367.4 | |
| 9.99 | -2.00 | 5.74 | -2.00 | 16.89 | 354.77 | 27.68 | 298.48 | 0.5076 | -1136.1 | 999999 | |
| 1.27 | 1.64 | 0.73 | 0.94 | 18.06 | 354.57 | 27.47 | 300.73 | 0.5123 | -447.6 | -173.8 | |
| 1.36 | -2.00 | 0.78 | -2.00 | 16.87 | 354.34 | 27.24 | 298.77 | 0.5018 | -962.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 17.88 | 354.43 | 27.33 | 300.52 | 0.5093 | -771.0 | -645.9 | |
| 0.00 | 2.54 | 0.00 | 1.48 | 19.68 | 354.68 | 27.58 | 303.44 | 0.5245 | -679.0 | -587.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 19.39 | 354.55 | 27.46 | 303.07 | 0.5210 | -742.0 | -571.8 | |
| 3.54 | 5.54 | 2.03 | 3.18 | 18.52 | 354.00 | 26.90 | 302.01 | 0.5080 | 796.9 | 690.7 | |
| 0.00 | 2.36 | 0.00 | 1.34 | 16.95 | 353.67 | 26.58 | 299.45 | 0.4934 | -875.0 | -646.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 19.79 | 353.97 | 26.87 | 304.24 | 0.5165 | -708.0 | -595.4 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 16.86 | 353.45 | 26.35 | 299.47 | 0.4898 | -825.0 | -668.5 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 15.59 | 352.84 | 25.74 | 297.54 | 0.4737 | -858.0 | -698.9 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 16.00 | 352.68 | 25.59 | 298.47 | 0.4742 | -938.0 | -783.8 | |
| 0.00 | 3.72 | 0.00 | 2.10 | 16.50 | 352.68 | 25.59 | 299.43 | 0.4774 | -796.0 | -647.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.14 | 352.86 | 25.76 | 302.32 | 0.4907 | 589.0 | 567.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 20.02 | 352.42 | 25.32 | 306.07 | 0.4992 | -754.0 | -555.8 | |
| 1.54 | 4.18 | 0.87 | 2.36 | 19.15 | 351.74 | 24.64 | 305.19 | 0.4839 | -767.4 | -626.4 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 15.91 | 351.17 | 24.07 | 299.62 | 0.4530 | 156.0 | 253.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 19.35 | 351.31 | 24.21 | 305.98 | 0.4801 | -789.0 | -626.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 20.20 | 351.38 | 24.28 | 307.43 | 0.4879 | -769.0 | -598.7 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 15.93 | 350.27 | 23.17 | 300.51 | 0.4410 | 730.0 | 515.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 19.52 | 350.63 | 23.53 | 307.01 | 0.4731 | -764.0 | -603.2 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 15.38 | 349.96 | 22.87 | 299.66 | 0.4330 | 750.0 | 606.8 | |
| 0.00 | 7.45 | 0.00 | 4.10 | 16.03 | 349.94 | 22.84 | 301.04 | 0.4373 | 518.0 | 536.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 19.65 | 350.37 | 23.27 | 307.53 | 0.4710 | -785.0 | -660.2 | |
| 0.00 | 4.36 | 0.00 | 2.40 | 16.32 | 349.70 | 22.60 | 301.87 | 0.4361 | 906.0 | 724.2 | |
| 0.00 | 3.72 | 0.00 | 2.04 | 16.71 | 349.23 | 22.13 | 303.16 | 0.4328 | 842.0 | 783.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.12 | 349.06 | 21.96 | 302.13 | 0.4260 | 890.0 | 702.4 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 17.80 | 348.33 | 21.24 | 306.35 | 0.4300 | 899.0 | 788.2 | |
| 0.00 | 3.54 | 0.00 | 1.93 | 17.49 | 347.75 | 20.65 | 306.46 | 0.4199 | 975.0 | 741.4 | |
| 0.00 | 3.45 | 0.00 | 1.88 | 17.85 | 347.35 | 20.25 | 307.67 | 0.4179 | 782.0 | 755.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.26 | 346.70 | 19.60 | 307.32 | 0.4046 | 781.0 | 567.6 | |
| 0.00 | 2.54 | 0.00 | 1.37 | 16.89 | 346.15 | 19.06 | 307.28 | 0.3943 | 851.0 | 705.8 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 16.96 | 345.89 | 18.79 | 307.79 | 0.3916 | 928.0 | 764.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
