SDO HMI 2011-07-05 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.13 | 280.74 | 31.52 | 162.30 | 16.93 | 354.26 | 28.26 | 298.25 | 0.5156 | -341.4 | -210.7 | |
|
previous
or next observation for the same group /

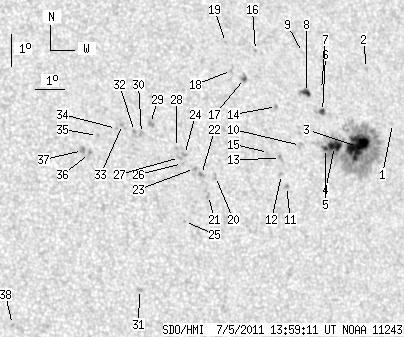

back to the solar disc SDO HMI 2011-07-05 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.65 | 17.53 | 356.96 | 30.97 | 297.31 | 0.5544 | -630.0 | -406.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 19.29 | 356.34 | 30.35 | 300.65 | 0.5565 | -735.0 | -565.5 | |
| 34.79 | 211.90 | 20.32 | 123.59 | 16.84 | 355.55 | 29.55 | 297.05 | 0.5321 | -1085.8 | -362.2 | |
| 8.08 | -3.00 | 4.69 | -3.00 | 16.86 | 354.71 | 28.72 | 297.67 | 0.5212 | -1141.4 | 999999 | |
| 1.82 | -3.00 | 1.05 | -3.00 | 16.81 | 354.37 | 28.38 | 297.81 | 0.5165 | -941.7 | 999999 | |
| 2.63 | 4.72 | 1.53 | 2.74 | 17.97 | 354.46 | 28.47 | 299.80 | 0.5246 | -768.7 | -300.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 18.67 | 354.55 | 28.56 | 300.93 | 0.5301 | 355.0 | 447.3 | |
| 4.63 | 6.54 | 2.69 | 3.79 | 18.59 | 353.99 | 28.00 | 301.23 | 0.5224 | 730.9 | 653.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 19.86 | 354.08 | 28.09 | 303.32 | 0.5320 | -495.0 | -410.5 | |
| 0.00 | 2.91 | 0.00 | 1.67 | 16.93 | 353.49 | 27.50 | 298.68 | 0.5055 | -798.0 | -672.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 15.66 | 352.80 | 26.81 | 296.84 | 0.4886 | -862.0 | -728.8 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 16.04 | 352.68 | 26.68 | 297.66 | 0.4892 | -880.0 | -764.4 | |
| 0.00 | 2.54 | 0.00 | 1.45 | 16.54 | 352.71 | 26.72 | 298.56 | 0.4928 | -768.0 | -682.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 18.17 | 352.83 | 26.84 | 301.45 | 0.5048 | 851.0 | 701.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 16.74 | 352.32 | 26.32 | 299.25 | 0.4887 | -546.0 | -571.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 19.96 | 352.38 | 26.39 | 304.97 | 0.5118 | -646.0 | -488.4 | |
| 2.18 | 3.27 | 1.24 | 1.87 | 19.09 | 351.83 | 25.84 | 303.94 | 0.4985 | -755.2 | -583.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 19.35 | 351.41 | 25.42 | 304.80 | 0.4952 | -867.0 | -641.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 20.24 | 351.35 | 25.36 | 306.42 | 0.5013 | -462.0 | -456.8 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 16.03 | 350.35 | 24.36 | 299.59 | 0.4577 | 573.0 | 496.7 | |
| 0.00 | 2.18 | 0.00 | 1.21 | 15.45 | 350.04 | 24.04 | 298.70 | 0.4495 | 692.0 | 583.2 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 16.11 | 349.88 | 23.88 | 300.17 | 0.4518 | 788.0 | 643.1 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 16.30 | 349.66 | 23.66 | 300.76 | 0.4502 | 817.0 | 733.7 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 16.74 | 349.37 | 23.38 | 301.93 | 0.4495 | 741.0 | 653.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 14.66 | 349.12 | 23.12 | 297.90 | 0.4317 | 771.0 | 599.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 16.46 | 349.26 | 23.27 | 301.48 | 0.4461 | 717.0 | 706.9 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 16.65 | 349.18 | 23.19 | 301.94 | 0.4464 | 923.0 | 734.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 16.97 | 349.12 | 23.13 | 302.63 | 0.4479 | 664.0 | 490.3 | |
| 0.00 | 3.91 | 0.00 | 2.16 | 17.74 | 348.32 | 22.33 | 304.99 | 0.4435 | 861.0 | 679.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.43 | 347.97 | 21.98 | 304.78 | 0.4365 | 803.0 | 677.8 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 12.58 | 347.38 | 21.39 | 294.86 | 0.3940 | 743.0 | 601.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.50 | 347.74 | 21.74 | 305.17 | 0.4340 | 977.0 | 788.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 17.73 | 347.35 | 21.36 | 306.07 | 0.4310 | 941.0 | 840.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 17.61 | 347.13 | 21.14 | 306.09 | 0.4272 | 816.0 | 692.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 17.40 | 346.46 | 20.46 | 306.50 | 0.4168 | 596.0 | 598.5 | |
| 0.00 | 3.27 | 0.00 | 1.77 | 16.84 | 346.12 | 20.13 | 305.77 | 0.4076 | 862.0 | 577.4 | |
| 0.00 | 3.63 | 0.00 | 1.97 | 16.94 | 345.90 | 19.90 | 306.26 | 0.4056 | 860.0 | 797.2 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 11.58 | 343.11 | 17.12 | 296.90 | 0.3248 | -795.0 | -626.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
