SDO HMI 2011-07-05 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.84 | 278.87 | 32.12 | 161.98 | 16.97 | 354.20 | 28.76 | 297.96 | 0.5224 | -357.4 | -186.9 | |
|
previous
or next observation for the same group /

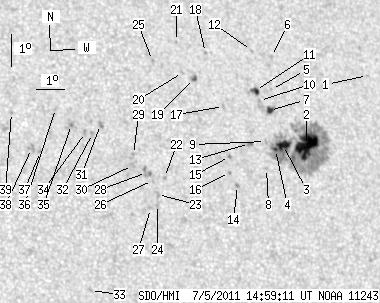

back to the solar disc SDO HMI 2011-07-05 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.78 | 18.99 | 358.27 | 32.83 | 298.55 | 0.5857 | -673.0 | -533.8 | |
| 34.78 | 204.35 | 20.44 | 119.84 | 16.86 | 355.55 | 30.11 | 296.71 | 0.5395 | -1072.2 | -363.8 | |
| 8.54 | -2.00 | 4.98 | -2.00 | 16.88 | 354.71 | 29.27 | 297.31 | 0.5286 | -1108.7 | 999999 | |
| 1.54 | -2.00 | 0.90 | -2.00 | 16.76 | 354.40 | 28.96 | 297.32 | 0.5238 | -1057.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 18.65 | 354.59 | 29.15 | 300.46 | 0.5374 | 727.0 | 627.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 19.70 | 354.79 | 29.35 | 302.05 | 0.5466 | -720.0 | -568.9 | |
| 3.63 | 4.81 | 2.12 | 2.81 | 17.99 | 354.39 | 28.95 | 299.48 | 0.5309 | -739.5 | -496.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 16.18 | 353.97 | 28.53 | 296.56 | 0.5149 | 339.0 | 104.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 17.02 | 354.08 | 28.64 | 298.01 | 0.5211 | -631.0 | -624.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.32 | 354.08 | 28.64 | 300.26 | 0.5289 | 684.0 | 439.3 | |
| 3.81 | 6.27 | 2.22 | 3.65 | 18.64 | 353.99 | 28.55 | 300.88 | 0.5298 | 736.4 | 600.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 19.91 | 354.09 | 28.65 | 302.95 | 0.5393 | -537.0 | -392.0 | |
| 0.00 | 2.72 | 0.00 | 1.57 | 16.98 | 353.49 | 28.05 | 298.35 | 0.5130 | -743.0 | -657.8 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 15.68 | 352.86 | 27.42 | 296.42 | 0.4970 | -821.0 | -687.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 16.59 | 352.71 | 27.27 | 298.23 | 0.5003 | -861.0 | -789.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 16.09 | 352.63 | 27.19 | 297.36 | 0.4963 | -824.0 | -762.0 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 18.16 | 352.75 | 27.31 | 301.04 | 0.5107 | 767.0 | 564.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 19.89 | 352.40 | 26.96 | 304.32 | 0.5182 | -768.0 | -576.5 | |
| 2.54 | 2.72 | 1.46 | 1.56 | 19.07 | 351.85 | 26.41 | 303.40 | 0.5056 | -782.7 | -593.5 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 19.27 | 351.46 | 26.02 | 304.11 | 0.5021 | -802.0 | -601.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 20.26 | 351.41 | 25.97 | 305.85 | 0.5089 | -746.0 | -593.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.99 | 350.32 | 24.88 | 299.04 | 0.4645 | 624.0 | 494.7 | |
| 0.00 | 3.45 | 0.00 | 1.92 | 15.46 | 350.01 | 24.57 | 298.27 | 0.4568 | 578.0 | 573.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.15 | 349.97 | 24.53 | 297.68 | 0.4543 | 468.0 | 373.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 19.68 | 350.45 | 25.01 | 305.77 | 0.4926 | -721.0 | -591.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 15.91 | 349.89 | 24.45 | 299.25 | 0.4581 | 592.0 | 572.4 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 15.03 | 349.71 | 24.27 | 297.66 | 0.4500 | 646.0 | 550.9 | |
| 0.00 | 6.27 | 0.00 | 3.49 | 16.16 | 349.71 | 24.27 | 299.91 | 0.4574 | 662.0 | 652.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 16.73 | 349.34 | 23.90 | 301.40 | 0.4563 | 845.0 | 714.3 | |
| 0.00 | 3.54 | 0.00 | 1.97 | 16.39 | 349.26 | 23.82 | 300.80 | 0.4528 | 725.0 | 661.2 | |
| 0.00 | 3.00 | 0.00 | 1.66 | 17.70 | 348.32 | 22.88 | 304.31 | 0.4502 | 832.0 | 695.9 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 17.42 | 348.00 | 22.56 | 304.10 | 0.4440 | 674.0 | 620.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 12.54 | 347.40 | 21.96 | 294.25 | 0.4020 | 710.0 | 549.1 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 17.46 | 347.77 | 22.33 | 304.43 | 0.4412 | 992.0 | 794.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 17.72 | 347.32 | 21.88 | 305.45 | 0.4375 | 965.0 | 832.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 18.23 | 346.83 | 21.39 | 307.02 | 0.4357 | 658.0 | 581.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.89 | 346.15 | 20.71 | 305.15 | 0.4157 | 902.0 | 734.8 | |
| 0.00 | 3.81 | 0.00 | 2.07 | 16.99 | 345.86 | 20.42 | 305.72 | 0.4127 | 913.0 | 801.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.14 | 345.31 | 19.87 | 308.73 | 0.4158 | 733.0 | 556.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
