SDO HMI 2011-07-05 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.17 | 80.47 | 16.89 | 83.53 | 15.50 | 26.66 | 61.22 | 285.87 | 0.8796 | -332.8 | -73.7 | |
|
previous
or next observation for the same group /

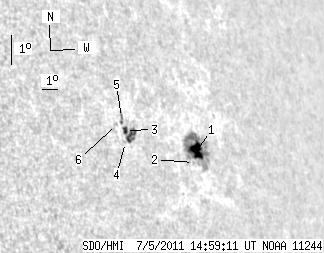

back to the solar disc SDO HMI 2011-07-05 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.08 | 58.49 | 13.97 | 62.57 | 15.29 | 27.67 | 62.23 | 285.53 | 0.8877 | -696.3 | -229.5 | |
| 0.00 | 0.91 | 0.00 | 0.96 | 14.93 | 27.28 | 61.84 | 285.16 | 0.8845 | -556.0 | -499.0 | |
| 3.09 | 14.35 | 2.92 | 13.66 | 16.12 | 23.52 | 58.08 | 286.90 | 0.8543 | 606.1 | 357.5 | |
| 0.00 | 1.63 | 0.00 | 1.54 | 15.75 | 23.35 | 57.91 | 286.49 | 0.8525 | 593.0 | 482.4 | |
| 0.00 | 3.36 | 0.00 | 3.18 | 16.53 | 23.48 | 58.04 | 287.39 | 0.8543 | 354.0 | 397.3 | |
| 0.00 | 1.73 | 0.00 | 1.62 | 16.33 | 23.08 | 57.64 | 287.21 | 0.8506 | 614.0 | 539.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
