SDO HMI 2011-07-05 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.30 | 270.43 | 30.19 | 157.99 | 17.01 | 354.22 | 29.33 | 297.62 | 0.5302 | -337.2 | -219.4 | |
|
previous
or next observation for the same group /

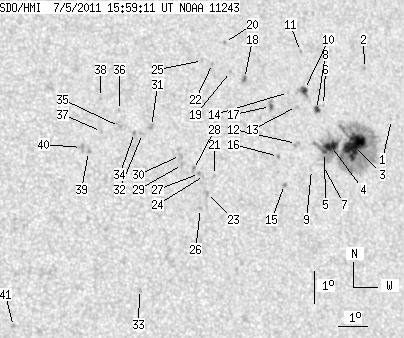

back to the solar disc SDO HMI 2011-07-05 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.44 | 17.65 | 357.08 | 32.20 | 296.75 | 0.5708 | -442.0 | -322.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 19.28 | 356.40 | 31.52 | 299.84 | 0.5710 | -736.0 | -661.1 | |
| 32.69 | 197.70 | 19.31 | 116.62 | 16.87 | 355.55 | 30.66 | 296.38 | 0.5469 | -1083.2 | -381.4 | |
| 7.99 | -3.00 | 4.68 | -3.00 | 16.86 | 354.70 | 29.81 | 296.92 | 0.5357 | -1131.6 | 999999 | |
| 1.09 | -3.00 | 0.64 | -3.00 | 16.68 | 354.41 | 29.53 | 296.79 | 0.5309 | -967.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 18.16 | 354.64 | 29.75 | 299.18 | 0.5422 | -384.0 | -306.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 16.31 | 354.28 | 29.39 | 296.22 | 0.5271 | -784.0 | -581.2 | |
| 2.72 | 4.09 | 1.60 | 2.40 | 18.04 | 354.36 | 29.47 | 299.18 | 0.5379 | -576.9 | -511.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.17 | 353.85 | 28.97 | 296.24 | 0.5206 | 443.0 | 231.6 | |
| 3.45 | 8.08 | 2.02 | 4.74 | 18.68 | 354.04 | 29.15 | 300.51 | 0.5376 | 751.7 | 625.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 19.89 | 354.12 | 29.24 | 302.45 | 0.5464 | -546.0 | -470.1 | |
| 0.00 | 2.82 | 0.00 | 1.63 | 16.99 | 353.44 | 28.56 | 298.01 | 0.5198 | -678.0 | -625.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 18.15 | 353.64 | 28.76 | 299.89 | 0.5294 | -791.0 | -553.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 18.60 | 353.43 | 28.55 | 300.83 | 0.5295 | 597.0 | 336.2 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 15.72 | 352.81 | 27.92 | 296.15 | 0.5041 | -864.0 | -672.7 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 16.60 | 352.73 | 27.84 | 297.82 | 0.5081 | -838.0 | -675.8 | |
| 1.63 | 4.27 | 0.95 | 2.47 | 18.18 | 352.70 | 27.81 | 300.66 | 0.5174 | 794.1 | 612.0 | |
| 1.73 | 2.91 | 0.99 | 1.68 | 19.09 | 351.92 | 27.03 | 302.89 | 0.5135 | -754.8 | -658.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 19.32 | 351.45 | 26.56 | 303.70 | 0.5093 | -770.0 | -567.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 20.25 | 351.40 | 26.51 | 305.33 | 0.5154 | -646.0 | -532.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 16.07 | 350.37 | 25.49 | 298.67 | 0.4732 | 536.0 | 435.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 19.59 | 350.85 | 25.96 | 304.71 | 0.5037 | -813.0 | -666.8 | |
| 0.00 | 2.82 | 0.00 | 1.57 | 15.51 | 350.02 | 25.13 | 297.88 | 0.4648 | 633.0 | 551.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 16.08 | 350.02 | 25.14 | 298.98 | 0.4685 | 277.0 | 399.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 19.69 | 350.51 | 25.62 | 305.21 | 0.5003 | -731.0 | -562.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.05 | 349.75 | 24.86 | 297.18 | 0.4583 | 798.0 | 642.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 16.14 | 349.86 | 24.97 | 299.26 | 0.4667 | 698.0 | 637.8 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 16.27 | 349.66 | 24.78 | 299.68 | 0.4649 | 870.0 | 688.7 | |
| 0.00 | 2.63 | 0.00 | 1.47 | 16.44 | 349.30 | 24.41 | 300.33 | 0.4612 | 852.0 | 659.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.72 | 349.27 | 24.38 | 300.91 | 0.4627 | 746.0 | 700.5 | |
| 0.00 | 3.27 | 0.00 | 1.82 | 17.65 | 348.38 | 23.50 | 303.57 | 0.4579 | 755.0 | 691.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 17.44 | 348.04 | 23.16 | 303.51 | 0.4518 | 665.0 | 591.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 12.59 | 347.39 | 22.50 | 293.89 | 0.4102 | 641.0 | 554.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.48 | 347.77 | 22.88 | 303.87 | 0.4485 | 953.0 | 721.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.68 | 347.28 | 22.39 | 304.79 | 0.4437 | 807.0 | 738.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 18.18 | 347.34 | 22.46 | 305.69 | 0.4486 | 733.0 | 506.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 17.53 | 346.63 | 21.75 | 305.22 | 0.4343 | 843.0 | 599.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 18.60 | 346.74 | 21.85 | 307.18 | 0.4446 | 628.0 | 548.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 16.91 | 346.11 | 21.23 | 304.58 | 0.4225 | 925.0 | 711.8 | |
| 0.00 | 4.36 | 0.00 | 2.38 | 17.04 | 345.89 | 21.00 | 305.11 | 0.4207 | 995.0 | 753.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.53 | 343.11 | 18.23 | 295.43 | 0.3408 | -786.0 | -597.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
