SDO HMI 2011-07-05 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.06 | 75.45 | 23.06 | 79.77 | 15.51 | 26.68 | 61.80 | 285.83 | 0.8841 | -204.6 | -75.8 | |
|
previous
or next observation for the same group /

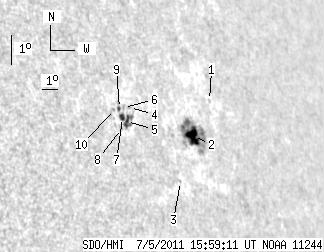

back to the solar disc SDO HMI 2011-07-05 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.58 | 16.33 | 29.49 | 64.61 | 286.51 | 0.9060 | -190.0 | -132.1 | |
| 14.53 | 51.85 | 15.81 | 56.63 | 15.29 | 27.73 | 62.85 | 285.48 | 0.8925 | -663.1 | -171.5 | |
| 0.00 | 1.09 | 0.00 | 1.13 | 13.95 | 26.19 | 61.30 | 284.09 | 0.8796 | -386.0 | -371.4 | |
| 0.00 | 1.27 | 0.00 | 1.24 | 16.38 | 24.07 | 59.19 | 287.08 | 0.8640 | -284.0 | -252.0 | |
| 2.72 | 12.80 | 2.63 | 12.38 | 15.96 | 23.68 | 58.80 | 286.63 | 0.8603 | 461.9 | 255.8 | |
| 0.00 | 2.27 | 0.00 | 2.20 | 16.40 | 23.71 | 58.82 | 287.14 | 0.8609 | 265.0 | 201.2 | |
| 3.27 | -5.00 | 3.14 | -5.00 | 16.09 | 23.50 | 58.61 | 286.81 | 0.8589 | 624.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.87 | 15.76 | 23.28 | 58.40 | 286.44 | 0.8567 | 514.0 | 479.0 | |
| 1.54 | 2.72 | 1.48 | 2.62 | 16.38 | 23.45 | 58.57 | 287.15 | 0.8587 | 548.1 | 403.5 | |
| 0.00 | 1.18 | 0.00 | 1.12 | 16.36 | 23.14 | 58.25 | 287.17 | 0.8560 | 632.0 | 564.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
