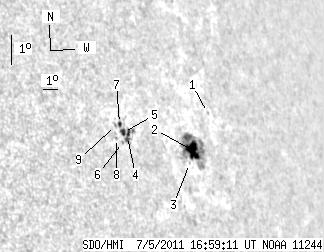

SDO HMI 2011-07-05 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.61 | 72.11 | 21.93 | 77.93 | 15.46 | 26.82 | 62.49 | 285.71 | 0.8895 | -202.7 | -104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 1.07 | 16.40 | 29.44 | 65.11 | 286.55 | 0.9095 | -141.0 | -117.5 | |
| 13.62 | 54.03 | 15.10 | 60.03 | 15.29 | 27.67 | 63.34 | 285.45 | 0.8962 | -674.8 | -205.0 | |
| 0.00 | 0.64 | 0.00 | 0.69 | 14.91 | 27.25 | 62.92 | 285.05 | 0.8928 | -367.0 | -420.3 | |
| 3.63 | 10.81 | 3.56 | 10.60 | 15.93 | 23.67 | 59.34 | 286.54 | 0.8649 | 401.3 | 308.4 | |
| 1.73 | -4.00 | 1.68 | -4.00 | 16.07 | 23.49 | 59.16 | 286.71 | 0.8634 | 711.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.14 | 15.76 | 23.28 | 58.95 | 286.38 | 0.8614 | 496.0 | 482.7 | |
| 1.63 | 2.09 | 1.59 | 2.03 | 16.36 | 23.38 | 59.05 | 287.06 | 0.8628 | 556.3 | 588.4 | |
| 0.00 | 1.09 | 0.00 | 1.05 | 15.90 | 22.98 | 58.65 | 286.58 | 0.8589 | 570.0 | 497.9 | |
| 0.00 | 1.36 | 0.00 | 1.32 | 16.31 | 23.11 | 58.78 | 287.03 | 0.8604 | 664.0 | 579.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
