SDO HMI 2011-07-05 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.89 | 72.37 | 26.01 | 80.97 | 15.48 | 26.80 | 63.58 | 285.65 | 0.8976 | -127.2 | -108.8 | |
|
previous
or next observation for the same group /

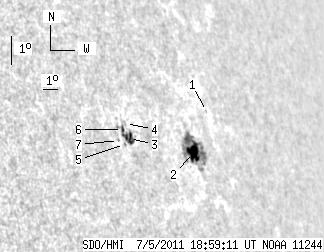

back to the solar disc SDO HMI 2011-07-05 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.90 | 16.51 | 29.48 | 66.26 | 286.57 | 0.9174 | -141.0 | -124.4 | |
| 13.26 | 53.39 | 15.28 | 61.69 | 15.30 | 27.73 | 64.51 | 285.37 | 0.9047 | -647.7 | -201.1 | |
| 8.63 | 14.44 | 8.72 | 14.56 | 15.95 | 23.65 | 60.43 | 286.44 | 0.8739 | 440.3 | 502.5 | |
| 0.00 | 1.45 | 0.00 | 1.47 | 16.42 | 23.64 | 60.42 | 286.98 | 0.8741 | 213.0 | 238.0 | |
| 0.00 | 1.27 | 0.00 | 1.27 | 15.78 | 23.25 | 60.03 | 286.28 | 0.8704 | 463.0 | 433.0 | |
| 2.00 | -3.00 | 2.01 | -3.00 | 16.25 | 23.35 | 60.13 | 286.81 | 0.8717 | 547.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.08 | 15.92 | 22.93 | 59.71 | 286.48 | 0.8679 | 606.0 | 585.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
