SDO HMI 2011-07-05 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.95 | 232.71 | 30.65 | 139.60 | 17.09 | 354.56 | 31.90 | 296.04 | 0.5640 | -401.2 | -252.6 | |
|
previous
or next observation for the same group /

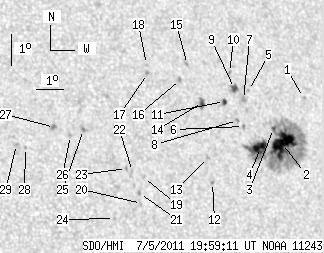

back to the solar disc SDO HMI 2011-07-05 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.84 | 18.33 | 356.62 | 33.95 | 296.83 | 0.5964 | -565.0 | -419.3 | |
| 30.15 | 183.87 | 18.23 | 111.05 | 16.92 | 355.51 | 32.85 | 295.15 | 0.5755 | -1044.5 | -353.1 | |
| 1.73 | -2.00 | 1.04 | -2.00 | 17.40 | 355.27 | 32.60 | 296.08 | 0.5746 | -694.4 | 999999 | |
| 9.81 | -2.00 | 5.87 | -2.00 | 16.82 | 354.66 | 32.00 | 295.47 | 0.5640 | -1093.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 18.62 | 354.57 | 31.91 | 298.50 | 0.5721 | 683.0 | 533.6 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 17.49 | 354.15 | 31.49 | 296.90 | 0.5608 | -691.0 | -544.5 | |
| 0.00 | 3.09 | 0.00 | 1.85 | 18.34 | 354.32 | 31.66 | 298.20 | 0.5674 | 330.0 | 170.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 17.69 | 353.97 | 31.30 | 297.34 | 0.5594 | -540.0 | -455.8 | |
| 3.54 | 4.90 | 2.12 | 2.94 | 18.70 | 354.06 | 31.39 | 298.95 | 0.5660 | 787.4 | 593.1 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 19.21 | 353.98 | 31.31 | 299.84 | 0.5679 | -791.0 | -678.0 | |
| 1.91 | 2.63 | 1.14 | 1.57 | 18.30 | 353.60 | 30.94 | 298.59 | 0.5580 | -793.6 | -752.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 15.78 | 352.70 | 30.03 | 294.84 | 0.5328 | -806.0 | -614.2 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 16.56 | 352.65 | 29.98 | 296.25 | 0.5362 | -859.0 | -632.6 | |
| 3.81 | 5.36 | 2.25 | 3.17 | 18.29 | 352.78 | 30.11 | 299.13 | 0.5475 | 804.8 | 662.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 19.50 | 352.46 | 29.80 | 301.38 | 0.5508 | -825.0 | -682.2 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 19.04 | 352.11 | 29.44 | 300.87 | 0.5434 | -831.0 | -690.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 19.26 | 350.93 | 28.27 | 302.14 | 0.5301 | -860.0 | -746.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 19.55 | 350.95 | 28.28 | 302.61 | 0.5322 | -681.0 | -531.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 16.00 | 350.24 | 27.57 | 296.88 | 0.5008 | 565.0 | 394.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 15.19 | 350.05 | 27.38 | 295.50 | 0.4937 | 631.0 | 548.9 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 15.50 | 350.02 | 27.35 | 296.11 | 0.4951 | 628.0 | 552.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 16.20 | 349.87 | 27.21 | 297.52 | 0.4971 | 616.0 | 531.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 16.30 | 349.67 | 27.01 | 297.86 | 0.4950 | 881.0 | 650.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 14.75 | 349.03 | 26.37 | 295.38 | 0.4773 | 686.0 | 534.1 | |
| 0.00 | 3.18 | 0.00 | 1.80 | 17.55 | 348.33 | 25.67 | 301.30 | 0.4853 | 937.0 | 684.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 17.38 | 347.85 | 25.18 | 301.40 | 0.4777 | 873.0 | 701.5 | |
| 0.00 | 2.81 | 0.00 | 1.58 | 17.64 | 347.32 | 24.66 | 302.39 | 0.4727 | 996.0 | 833.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 17.04 | 346.22 | 23.56 | 302.29 | 0.4539 | 849.0 | 692.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 17.14 | 345.92 | 23.26 | 302.79 | 0.4507 | 856.0 | 735.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
