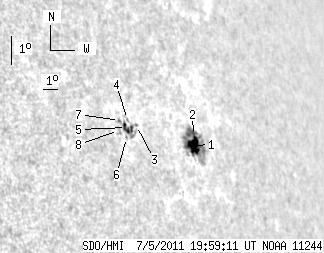

SDO HMI 2011-07-05 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.62 | 73.72 | 20.09 | 83.79 | 15.52 | 26.63 | 63.97 | 285.66 | 0.9005 | -218.9 | -42.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.62 | 53.39 | 14.85 | 63.00 | 15.31 | 27.70 | 65.04 | 285.34 | 0.9085 | -633.4 | -190.6 | |
| 0.91 | -1.00 | 1.07 | -1.00 | 15.61 | 27.89 | 65.22 | 285.67 | 0.9099 | -469.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.04 | 16.12 | 24.11 | 61.45 | 286.53 | 0.8821 | 159.0 | 94.0 | |
| 0.00 | 1.09 | 0.00 | 1.12 | 16.34 | 23.63 | 60.96 | 286.82 | 0.8784 | 233.0 | 211.2 | |
| 4.09 | 11.89 | 4.17 | 12.21 | 16.09 | 23.43 | 60.77 | 286.57 | 0.8767 | 623.6 | 342.5 | |
| 0.00 | 1.09 | 0.00 | 1.11 | 15.78 | 23.27 | 60.61 | 286.23 | 0.8752 | 482.0 | 439.8 | |
| 0.00 | 1.45 | 0.00 | 1.47 | 16.33 | 23.10 | 60.43 | 286.87 | 0.8742 | 625.0 | 544.4 | |
| 0.00 | 3.81 | 0.00 | 3.84 | 16.03 | 22.88 | 60.21 | 286.55 | 0.8721 | 315.0 | 488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
