SDO HMI 2011-07-05 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.93 | 250.53 | 34.99 | 150.79 | 17.10 | 354.25 | 32.14 | 295.93 | 0.5672 | -380.3 | -241.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-05 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

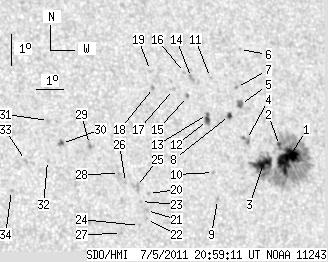

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.51 | 191.68 | 17.34 | 116.42 | 16.91 | 355.50 | 33.39 | 294.85 | 0.5824 | -1049.9 | -338.0 | |
| 2.27 | -1.00 | 1.38 | -1.00 | 17.36 | 355.28 | 33.18 | 295.70 | 0.5818 | -695.9 | 999999 | |
| 16.89 | -1.00 | 10.16 | -1.00 | 16.82 | 354.57 | 32.46 | 295.20 | 0.5699 | -1015.1 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.89 | 17.59 | 354.08 | 31.97 | 296.76 | 0.5674 | 167.0 | -386.6 | |
| 3.90 | 4.18 | 2.36 | 2.52 | 18.69 | 354.08 | 31.97 | 298.57 | 0.5732 | 775.9 | 679.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 20.43 | 354.43 | 32.32 | 301.11 | 0.5874 | -320.0 | -405.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 19.23 | 354.04 | 31.93 | 299.47 | 0.5757 | -810.0 | -675.9 | |
| 1.82 | 3.00 | 1.09 | 1.80 | 18.36 | 353.59 | 31.48 | 298.33 | 0.5652 | -807.0 | -736.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 15.74 | 352.66 | 30.55 | 294.46 | 0.5395 | -735.0 | -516.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 16.59 | 352.66 | 30.55 | 295.94 | 0.5437 | -882.0 | -674.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 19.58 | 353.13 | 31.02 | 300.63 | 0.5664 | -605.0 | -496.0 | |
| 2.91 | 6.08 | 1.73 | 3.61 | 18.23 | 352.74 | 30.63 | 298.67 | 0.5536 | 797.2 | 567.2 | |
| 0.27 | -12.00 | 0.16 | -12.00 | 18.41 | 352.78 | 30.67 | 298.96 | 0.5552 | 725.3 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.89 | 19.60 | 352.42 | 30.31 | 301.16 | 0.5577 | -790.0 | -634.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 19.00 | 352.15 | 30.04 | 300.37 | 0.5507 | -820.0 | -747.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 19.77 | 352.19 | 30.08 | 301.59 | 0.5559 | -708.0 | -592.3 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 19.24 | 351.67 | 29.56 | 301.11 | 0.5461 | -604.0 | -483.1 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 19.32 | 350.95 | 28.84 | 301.79 | 0.5376 | -884.0 | -785.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 19.86 | 350.94 | 28.83 | 302.70 | 0.5411 | -626.0 | -519.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 16.00 | 350.19 | 28.08 | 296.51 | 0.5076 | 513.0 | 394.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 15.47 | 350.04 | 27.93 | 295.64 | 0.5027 | 541.0 | 489.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 15.19 | 350.00 | 27.89 | 295.14 | 0.5006 | 731.0 | 592.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 15.76 | 349.87 | 27.76 | 296.29 | 0.5019 | 689.0 | 563.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 15.01 | 349.72 | 27.61 | 294.99 | 0.4959 | 644.0 | 527.4 | |
| 0.00 | 5.08 | 0.00 | 2.91 | 16.23 | 349.79 | 27.68 | 297.22 | 0.5036 | 597.0 | 564.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 16.36 | 349.42 | 27.31 | 297.74 | 0.4994 | 724.0 | 583.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 14.78 | 349.05 | 26.94 | 295.01 | 0.4854 | 701.0 | 604.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.65 | 349.25 | 27.14 | 298.40 | 0.4988 | 755.0 | 641.0 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 17.59 | 348.32 | 26.21 | 300.88 | 0.4926 | 801.0 | 646.0 | |
| 1.36 | 2.91 | 0.77 | 1.64 | 17.64 | 347.34 | 25.23 | 301.85 | 0.4801 | 835.6 | 737.5 | |
| 0.00 | 1.91 | 0.00 | 1.08 | 18.38 | 346.99 | 24.88 | 303.53 | 0.4809 | 650.0 | 552.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 17.12 | 346.77 | 24.66 | 301.39 | 0.4689 | 692.0 | 551.3 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 17.14 | 346.00 | 23.89 | 302.15 | 0.4589 | 871.0 | 741.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 16.21 | 345.39 | 23.28 | 300.91 | 0.4442 | 796.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
