SDO HMI 2011-07-05 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.48 | 258.09 | 33.17 | 156.15 | 17.14 | 354.19 | 32.64 | 295.73 | 0.5738 | -433.3 | -205.4 | |
|
previous
or next observation for the same group /

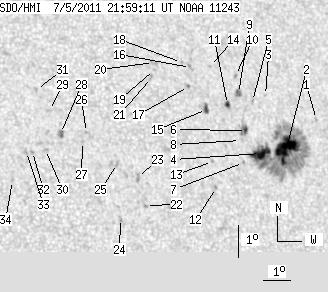

back to the solar disc SDO HMI 2011-07-05 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | 17.81 | 356.88 | 35.33 | 295.27 | 0.6110 | -544.0 | -353.3 | |
| 32.60 | 189.78 | 19.96 | 115.99 | 16.93 | 355.52 | 33.97 | 294.57 | 0.5900 | -982.5 | -338.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 18.62 | 355.08 | 33.52 | 297.52 | 0.5923 | -474.0 | -335.4 | |
| 14.07 | -2.00 | 8.52 | -2.00 | 16.81 | 354.51 | 32.95 | 294.91 | 0.5762 | -1048.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 18.45 | 354.54 | 32.98 | 297.55 | 0.5847 | 724.0 | 506.9 | |
| 2.09 | 8.17 | 1.26 | 4.94 | 17.55 | 354.12 | 32.57 | 296.33 | 0.5748 | -485.8 | -105.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 16.55 | 353.81 | 32.26 | 294.85 | 0.5660 | -785.0 | -690.4 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 17.24 | 353.83 | 32.28 | 295.99 | 0.5696 | -466.0 | -358.3 | |
| 0.00 | 4.63 | 0.00 | 2.81 | 18.72 | 354.06 | 32.51 | 298.27 | 0.5801 | 908.0 | 691.4 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 19.29 | 354.07 | 32.52 | 299.17 | 0.5833 | -753.0 | -608.5 | |
| 2.27 | 3.00 | 1.37 | 1.81 | 18.38 | 353.57 | 32.02 | 298.03 | 0.5721 | -816.4 | -621.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 15.80 | 352.67 | 31.11 | 294.22 | 0.5473 | -786.0 | -609.9 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 16.61 | 352.66 | 31.11 | 295.63 | 0.5512 | -790.0 | -631.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 19.60 | 353.15 | 31.59 | 300.27 | 0.5736 | -536.0 | -480.5 | |
| 3.45 | 4.45 | 2.06 | 2.66 | 18.25 | 352.75 | 31.20 | 298.33 | 0.5610 | 755.8 | 555.5 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 19.59 | 352.43 | 30.87 | 300.74 | 0.5646 | -768.0 | -641.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 18.99 | 352.23 | 30.67 | 299.90 | 0.5585 | -808.0 | -712.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 19.76 | 352.12 | 30.57 | 301.23 | 0.5618 | -580.0 | -489.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 19.57 | 351.07 | 29.52 | 301.68 | 0.5476 | -696.0 | -592.2 | |
| 0.00 | 4.00 | 0.00 | 2.36 | 19.79 | 351.08 | 29.53 | 302.04 | 0.5491 | -744.0 | -581.3 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 19.32 | 350.91 | 29.36 | 301.38 | 0.5440 | -805.0 | -682.2 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 15.31 | 350.00 | 28.44 | 294.98 | 0.5088 | 718.0 | 552.4 | |
| 0.00 | 3.54 | 0.00 | 2.04 | 16.19 | 349.84 | 28.29 | 296.70 | 0.5115 | 506.0 | 569.0 | |
| 0.00 | 2.54 | 0.00 | 1.45 | 14.93 | 349.05 | 27.49 | 294.91 | 0.4938 | 645.0 | 519.6 | |
| 0.00 | 2.36 | 0.00 | 1.35 | 16.65 | 349.20 | 27.64 | 298.01 | 0.5054 | 764.0 | 622.7 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 17.65 | 348.24 | 26.69 | 300.58 | 0.4991 | 744.0 | 586.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.37 | 348.05 | 26.50 | 300.22 | 0.4948 | 804.0 | 626.6 | |
| 0.00 | 4.45 | 0.00 | 2.52 | 17.64 | 347.31 | 25.76 | 301.35 | 0.4869 | 958.0 | 770.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 18.37 | 347.04 | 25.48 | 302.94 | 0.4885 | 647.0 | 535.1 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 17.15 | 346.71 | 25.15 | 300.98 | 0.4756 | 743.0 | 521.7 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 19.04 | 346.68 | 25.13 | 304.49 | 0.4889 | 648.0 | 516.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 17.10 | 346.24 | 24.69 | 301.30 | 0.4691 | 764.0 | 601.4 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 17.10 | 346.03 | 24.48 | 301.51 | 0.4664 | 939.0 | 739.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.21 | 345.42 | 23.87 | 300.33 | 0.4520 | 803.0 | 585.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
