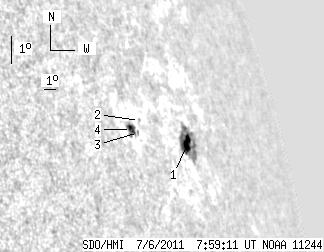

SDO HMI 2011-07-06 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.27 | 51.79 | 19.20 | 78.52 | 15.43 | 27.11 | 71.06 | 285.16 | 0.9456 | -174.7 | -58.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-06 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.00 | 41.70 | 12.48 | 65.60 | 15.31 | 27.85 | 71.79 | 285.01 | 0.9499 | -551.6 | -91.8 | |
| 0.00 | 1.00 | 0.00 | 1.32 | 16.25 | 24.09 | 68.03 | 286.15 | 0.9285 | 45.0 | 50.9 | |
| 0.00 | 1.00 | 0.00 | 1.30 | 15.88 | 23.74 | 67.69 | 285.78 | 0.9263 | -122.0 | -141.8 | |
| 5.27 | 8.09 | 6.72 | 10.30 | 16.01 | 23.24 | 67.19 | 285.94 | 0.9231 | 484.6 | 426.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
