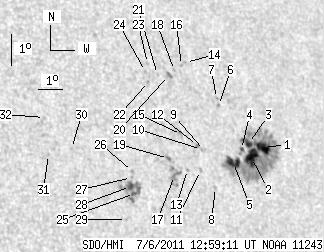

SDO HMI 2011-07-06 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.59 | 233.98 | 29.40 | 156.74 | 16.97 | 353.97 | 40.66 | 291.74 | 0.6727 | -489.5 | -226.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-06 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 161.41 | 6.61 | 110.03 | 17.17 | 355.77 | 42.46 | 291.39 | 0.6949 | -847.0 | -308.6 | |
| 14.53 | -1.00 | 9.88 | -1.00 | 16.88 | 355.17 | 41.86 | 291.17 | 0.6870 | -1012.3 | 999999 | |
| 3.72 | -1.00 | 2.54 | -1.00 | 17.32 | 355.16 | 41.85 | 291.80 | 0.6883 | -738.3 | 999999 | |
| 1.45 | 2.91 | 0.98 | 1.97 | 17.14 | 354.81 | 41.50 | 291.67 | 0.6836 | -806.4 | -763.9 | |
| 9.81 | -1.00 | 6.59 | -1.00 | 16.75 | 354.37 | 41.06 | 291.25 | 0.6771 | -915.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 18.56 | 354.23 | 40.92 | 293.88 | 0.6814 | 638.0 | 456.2 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 18.78 | 354.21 | 40.90 | 294.21 | 0.6819 | 456.0 | 431.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 16.00 | 353.42 | 40.11 | 290.48 | 0.6634 | 609.0 | 399.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 17.17 | 353.26 | 39.95 | 292.25 | 0.6651 | -578.0 | -560.7 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 17.21 | 353.14 | 39.83 | 292.35 | 0.6638 | -697.0 | -593.6 | |
| 0.00 | 1.82 | 0.00 | 1.19 | 16.55 | 352.93 | 39.62 | 291.46 | 0.6591 | -309.0 | -412.8 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 17.34 | 353.01 | 39.70 | 292.59 | 0.6627 | -663.0 | -534.9 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 16.60 | 352.41 | 39.10 | 291.73 | 0.6529 | -632.0 | -534.8 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 19.97 | 353.25 | 39.94 | 296.27 | 0.6752 | -559.0 | -511.2 | |
| 0.00 | 1.63 | 0.00 | 1.07 | 17.71 | 352.44 | 39.13 | 293.35 | 0.6571 | 524.0 | 463.7 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 19.88 | 353.05 | 39.74 | 296.23 | 0.6725 | -643.0 | -483.5 | |
| 0.00 | 12.63 | 0.00 | 8.17 | 16.44 | 351.84 | 38.53 | 291.69 | 0.6452 | -967.0 | -775.1 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 19.73 | 352.71 | 39.40 | 296.17 | 0.6680 | -484.0 | -392.7 | |
| 0.00 | 1.73 | 0.00 | 1.12 | 16.97 | 351.72 | 38.41 | 292.55 | 0.6457 | -972.0 | -775.0 | |
| 0.00 | 3.63 | 0.00 | 2.40 | 19.58 | 352.42 | 39.11 | 296.08 | 0.6639 | -784.0 | -664.3 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 19.63 | 351.97 | 38.66 | 296.35 | 0.6589 | -428.0 | -415.2 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 19.42 | 351.54 | 38.23 | 296.24 | 0.6529 | -883.0 | -644.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 19.99 | 351.66 | 38.35 | 297.02 | 0.6568 | -535.0 | -468.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 19.74 | 351.51 | 38.20 | 296.72 | 0.6539 | -756.0 | -555.6 | |
| 1.54 | 27.52 | 0.97 | 17.35 | 15.93 | 350.12 | 36.81 | 291.60 | 0.6218 | 622.4 | 488.7 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 16.62 | 350.19 | 36.88 | 292.63 | 0.6253 | 548.0 | 428.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 16.43 | 350.11 | 36.80 | 292.38 | 0.6235 | 325.0 | 345.6 | |
| 2.91 | -25.00 | 1.83 | -25.00 | 16.15 | 350.01 | 36.70 | 291.99 | 0.6212 | 729.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 15.13 | 349.64 | 36.32 | 290.54 | 0.6128 | 621.0 | 470.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.42 | 347.96 | 34.65 | 294.91 | 0.6004 | 580.0 | 438.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 17.26 | 347.04 | 33.73 | 295.14 | 0.5879 | 736.0 | 596.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 18.43 | 347.14 | 33.83 | 296.95 | 0.5947 | 582.0 | 466.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
